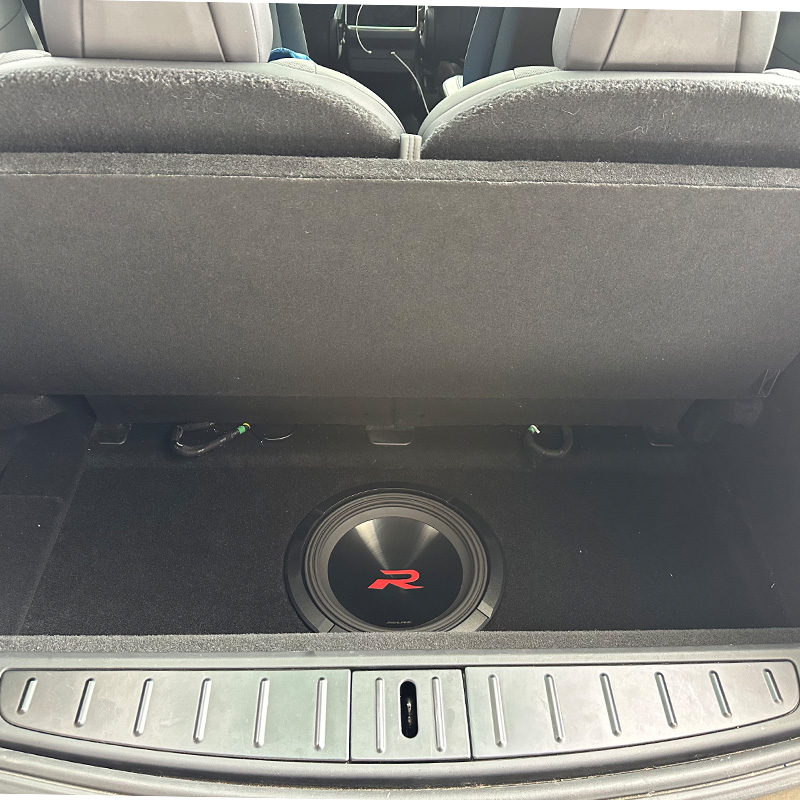

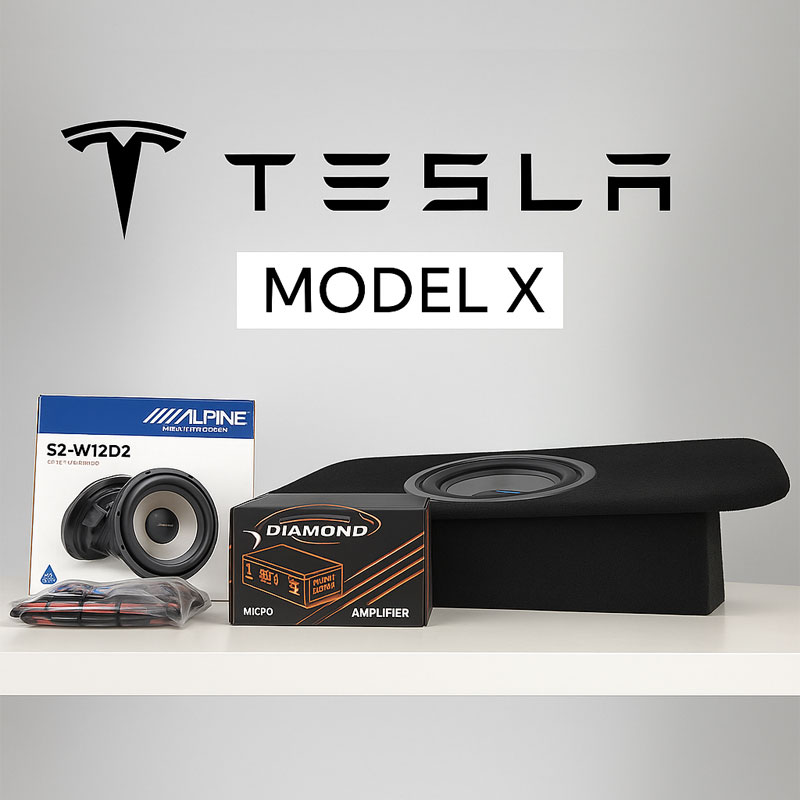

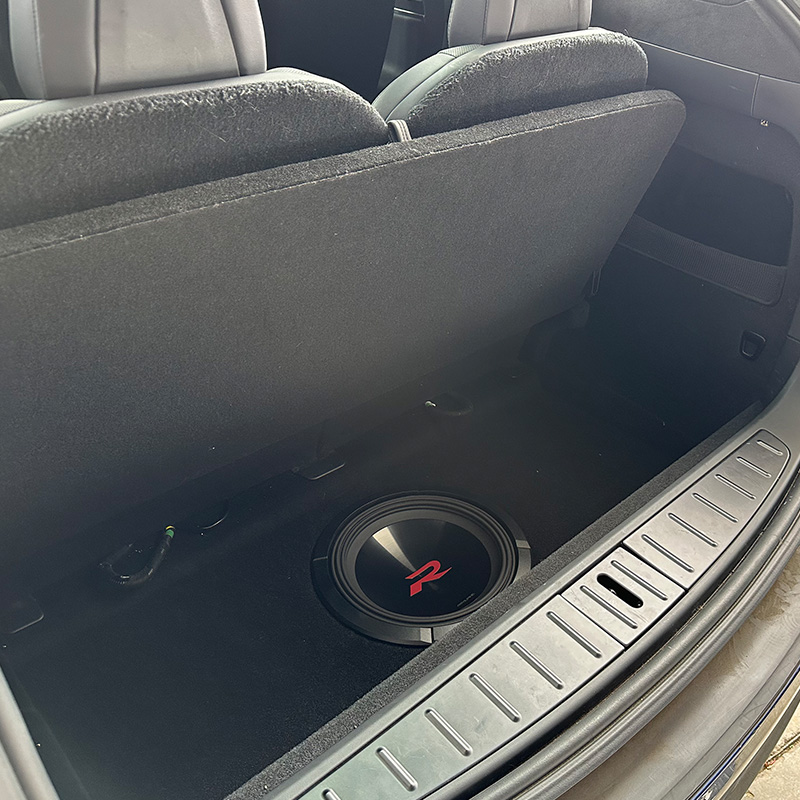

The reason for this product We’ve put together a custom bass package designed specifically for your Tesla—built to deliver powerful, clean bass while safely integrating with the factory audio system. This all-in-one package includes everything needed for installation: a custom-engineered enclosure and precision finishing panel that blend seamlessly with the interior for an OEM-quality look. The system is engineered to protect your Tesla’s electrical components and is backed by a full 1-year warranty for peace of mind. For base audio systems: You’ll experience a dramatic improvement in low-end response, adding the depth your factory setup is missing. For premium systems with the factory subwoofer: This upgrade provides the deep, rich bass Tesla left out that only a 12″ woofer can provide. With this package, you’ll get the bass you’ve been craving, without compromising the safety or integrity of your Tesla. Audio Equipment List MICRO2V2 – 2 Channel Full Range Digital Amplifier Sound quality in a small footprint can be found in Diamond Audio’s MICROV2 series of amplifiers. Featuring ultra-efficient full-range Class D topology, these compact amplifiers deliver huge power for their size! The added feature of advanced Rollback/Thermal protection that allows you to enjoy continuous and uninterrupted play without shutting down. Installation possibilities are endless! When you’re looking for quality and performance in a small package, look to MICROV2 from Diamond Audio. Ultra-compact, high density aluminum alloy chassis – Balanced differential inputs for noise-free operation – Full-range digital Class D technology with Direct FET power MOSFET output stage – 12dB per octave adjustable crossovers and Diamond bass boost EQ – 12dB @ 45Hz – Advanced rollback power circuitry keeps your amp cool and your music playing – Selectable 3 option Auto Turn-On Mode circuit designed to work with ANY OEM head-unit, simplifying installation Features: 2 Channel Full Range Digital Amplifier 250W x 2CH @ 2Ω / 150W x 2CH @ 4Ω / 500W x 1CH @4Ω Bridged RMS Power Output Input Sensitivity: 0.2-10 Volt Crossover Filter : 40-400Hz, 12dB Per Octave Slope Frequency Response: 10-33KHz Selectable REM / VOX / DC Turn On Modes Selectable X-Over: LPF / FLAT / HPF Dimensions: 7.89” x 4.1” x 1.46” / 200.5 x 103 x 37.2 mm Remote Bass Knob Included Disconnected RCA Input & Speaker Output Harness Kits Include or MICRO81u – 1 Channel Full Range Digital Amplifier 1-CHANNEL 600W X 1@ 1Ω 400W X 1 @ 2Ω 240W X 1 @ 4Ω RMS, ALL-WEATHER APPLICATION Input Sensitivity: 0.2-10 Volt Crossover Filter : 40-400Hz, 12dB Per Octave Slope Frequency Response: 10-33KHz Selectable REM / VOX / DC Turn On Modes Selectable 2CH / 4CH Input Modes Dimensions: 9.1” x 4.1” x 1.46” / 230.5 x 103 x 37.2 mm Disconnected RCA Input & Speaker Output Harness Kits Included Alpine S2-W12D2 12″ subwoofer with dual 2-ohm voice coils carbon fiber/polypropylene cone with HAMR rubber surround frequency response: 23-215 Hz power handling: 600 watts RMS (300 watts per coil) or Alpine R2-W12D2 12″ subwoofer with dual 2-ohm voice coils Kevlar reinforced pulp cone with HAMR Santoprene rubber surround frequency response: 24-200 Hz power handling: 300-750 watts RMS (375 watts per coil) peak power: 2250 watts sensitivity: 85 dB top-mount depth: 6.47″ Wiring Kit 17ft of OFC 8AWG Power Wire 3ft of OFC 8AWG Ground WIre 6ft of OCF 12AWG Speaker Wire Mini ANL Fuse holder and fuse 4ft of Wire loom Custom Box and Beauty Panel Custom Box Designed to drop into the subfloor Panel designed to press fit box into place and keep box stable Black Carpet Box Volume .73 cubic feet or 1.12
