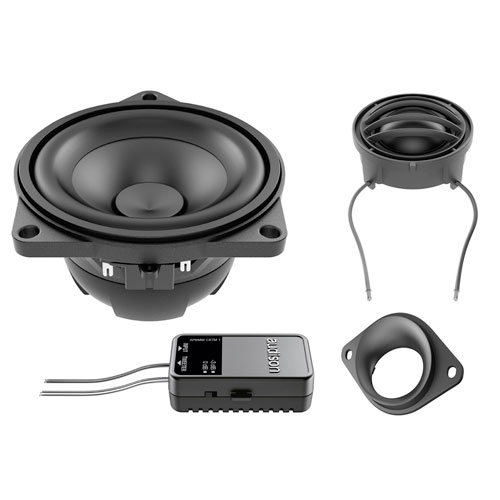

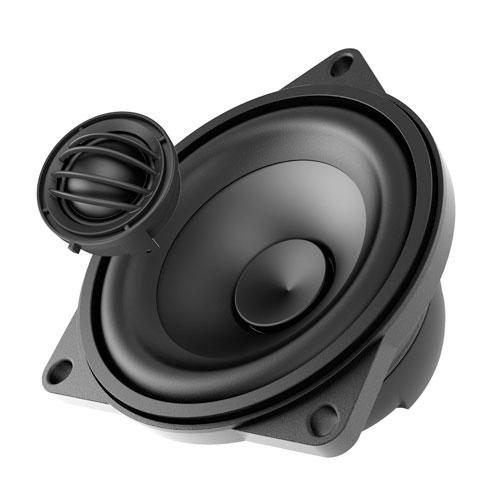

Description APBMW K4M 2-way system for BMW-MINI The two-way APBMW K4M kit creates a three-dimensional sound stage and give the musical message the essential timbre accuracy. The 100 mm (4″) midrange is provided with a water-repellent pressed-paper cone, a material providing natural sound. It features a low resonance frequency that allows hi-pass cut-off in the 150-200 Hz range for an excellent mid-low reproduction. The 25 mm coil and Tetolon dome tweeter features a great extension on both medium and high frequencies and is optimized for off-axis output, for an extended sound stage in the three dimensions, that amplifies the perception of reality in the car cabin. Technical Data Component 2-way System Woofer Size mm (in.) 100 (4) Tweeter Size mm (in.) 29 (1.1) Power Handling W peakW continuos 10050 Impedance Ω 4 Frequency Response Hz 90 ÷ 23k Sensitivity Hz 89 Crossover Type Hi-Pass: 6 KHz @ 6dB/Oct. Component adjustment dB -3; 0 Woofer Magnet size D x d x h mm(in.) 50 x 29 x 3(1.97 x 1.14 x 0.12) Tweeter Magnet size D x d x h mm(in.) 24,5 x 4(0.96 x 0.16) Weight of one speaker Woofer 0,426 (0.94) Tweeter 0,06 (0.13) Voice Coil Ø Woofer 25 (1) Tweeter 25 (1)
