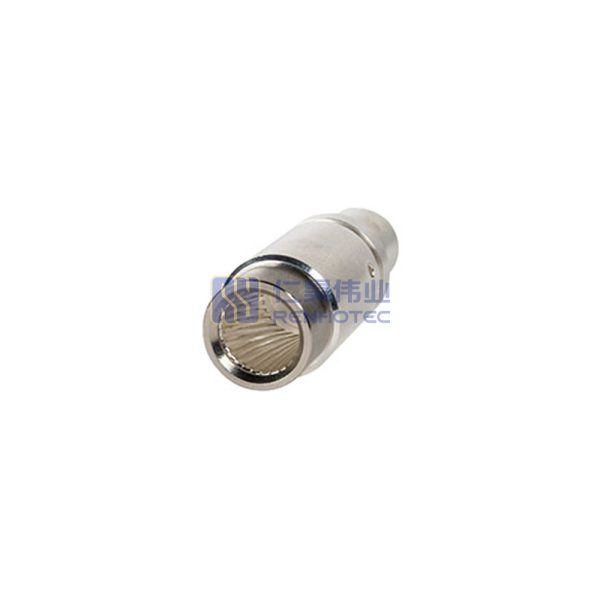

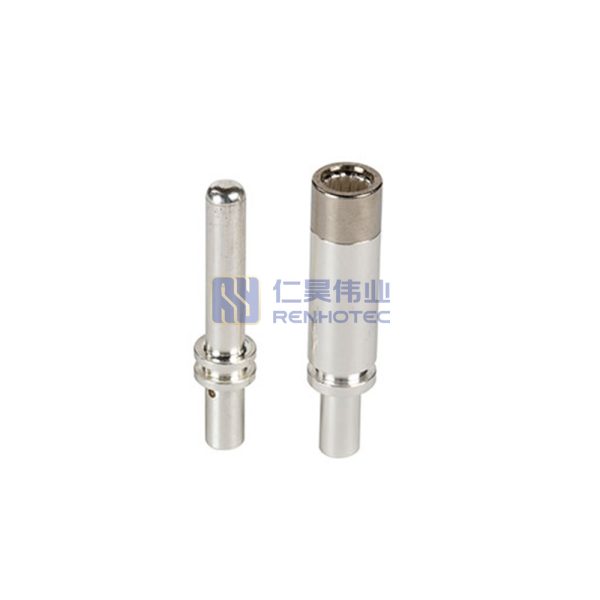

16A-1000A Hyperboloid Contacts

Electrical Characteristics Rated Current 16A, 32A, 63A, 80A, 125A, 200A, 250A, 300A, 400A, 500A, 1000A Rated Voltage 1000V/DC Contact Resistance ≤0.05mΩ, ≤0.08mΩ, ≤1.0MΩ, 0.5MΩ MAX Rated Current 16A, 32A, 63A, 80A, 125A, 200A, 250A, 300A, 400A, 500A, 1000A Rated Voltage 1000V/DC Contact Resistance ≤0.05mΩ, ≤0.08mΩ, ≤1.0MΩ, 0.5MΩ MAX Product Type Material Brass, Copper Diameter 6mm, 12mm, 14mm, 16mm, 18mm, 24mm Material Brass, Copper Diameter 6mm, 12mm, 14mm, 16mm, 18mm, 24mm Contact Type Contact Material Beryllium Bronze Contact Finish Gold Plating, Silver Plating Contact Material Beryllium Bronze Contact Finish Gold Plating, Silver Plating Mechanical Characteristics Mating Cycles ≥10000 Pulling Force ≤(10-18N), ≤(25-35N), ≤35N, ≤40N, ≤50N Mating Cycles ≥10000 Pulling Force ≤(10-18N), ≤(25-35N), ≤35N, ≤40N, ≤50N Environmental Characteristics Operating Temperature Max120℃ Operating Temperature Max120℃ The machining terminal generally adopts a cylindrical structure, primarily using the female terminal as an elastic structure, and its current transmission method usually adopts the form of a crown spring, hyperboloid spring, and lamella spring and the coating is applying silver material. Automotive hard silver plating technology is able to be working on every charging interface. And this hard silver plating technology can effectively extend the service life of car. Hyperboloid Contacts Product Code Rated Current Dimension(mm) Contact Resistance Pulling Force ≤ (N) MAX Time(H) RHT-GBDC-FLN-H3-80 80A 12mm ≤0.5mΩ ≤(25-35N) 8H RHT-GBDC-FLN-H3-125 125A 12mm RHT-GBDC-FLN-H3-200 200A 12mm RHT-GBDC-FLN-H3-250 250A 12mm RHT-GBAC-FLN-H1-63 63A 6mm ≤(10-18N) RHT-IECAC-FLN-H1-32 32A 6mm RHT-IECAC-FLN-H1-16 16A 6mm RHT-HBS-14 300A 14mm ≤0.1mΩ ≤35N RHT-HBS-16 400A 16mm ≤0.1mΩ ≤40N RHT-HBS-18 500A 18mm ≤0.08mΩ ≤50N RHT-HBS-24 1000A 24mm ≤0.05mΩ Product Type Application
