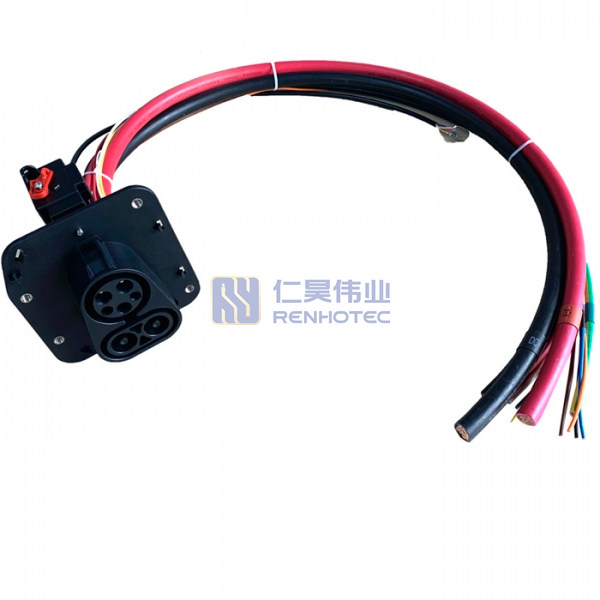

CCS COMBO1 150A 1000V Socket Connector Single Phase EV High Voltage Charger with 0.5 Meters Cable

Standards and Specifications Charging Standards SAE J1772 Charging Standards SAE J1772 Product Type Rated Type DC Connector Type Socket Mounting Type Cable Mount Shell Material Themoplastic Power Phase Single Phase Wire Gauge 2X50mm² 1X 25mm² 6 X 0.75mm² Rated Type DC Connector Type Socket Mounting Type Cable Mount Shell Material Themoplastic Power Phase Single Phase Wire Gauge 2X50mm² 1X 25mm² 6 X 0.75mm² Contact Type Contact Material Copper Alloy Contact Finish Silver Plating Contact Material Copper Alloy Contact Finish Silver Plating Electrical Characteristics Contact Resistance 0.5MΩ MAX Insulation Resistance ＞2000MΩ(DC1000V) Rated Current 150A Rated Voltage 1000V Power 127kW Contact Resistance 0.5MΩ MAX Insulation Resistance ＞2000MΩ(DC1000V) Rated Current 150A Rated Voltage 1000V Power 127kW Environmental Characteristics Flammability UL94 V-0 Ingress Protection IP65 Operating Temperature -30℃~50℃ Flammability UL94 V-0 Ingress Protection IP65 Operating Temperature -30℃~50℃ Renhotec is a manufacturer specializing in EV charging products. In addition to production, our company has design and r&d departments. Our main products are EV charging stations, EV cables, and EV connectors. Along with the regular products, we also offer product customization services upon request to meet the local market preferences and needs. EV charging cable Electric Vehicle Charging Cables are essential if you own an electric car. They enable you to connect your electric car to a charging point. While some public charging points come with cables already attached, most would expect you to provide your own. However, a few key points to consider to ensure you purchase the most suitable one for your application. Renhotec offers a great selection of high-quality EV Charging cables. Our EV cables come in various current ratings, voltage ratings, cable lengths, and connector combinations. In both single-phase and three-phase.
