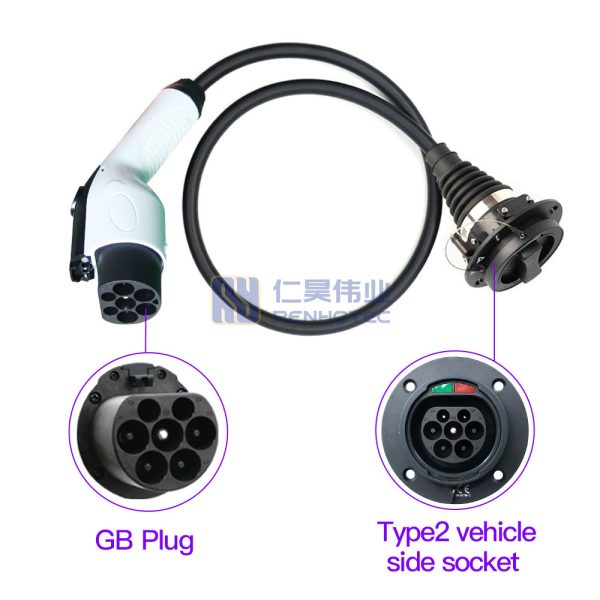

GBT Plug to IEC 62196-3 Socket 32A 250V EV Fast Charging Adapter with 1 Meters Cable

Product Type Connector Type Plug, Socket Rated Type AC Shell Material Themoplastic Color Black, White Application Adapter Connector Type Plug, Socket Rated Type AC Shell Material Themoplastic Color Black, White Application Adapter Electrical Characteristics Rated Current 32A Rated Voltage 250V Contact Resistance 0.5MΩ MAX Insulation Resistance ＞2000MΩ(DC1000V) Power 8kW Withstand Voltage 2000V Rated Current 32A Rated Voltage 250V Contact Resistance 0.5MΩ MAX Insulation Resistance ＞2000MΩ(DC1000V) Power 8kW Withstand Voltage 2000V Standards and Specifications Charging Standards GB/T 20234.2-2015, IEC 62196-3 Charging Standards GB/T 20234.2-2015, IEC 62196-3 Contact Type Contact Material Copper Alloy Contact Finish Silver Plating Contact Material Copper Alloy Contact Finish Silver Plating Environmental Characteristics Flammability UL94 V-0 Ingress Protection IP65 Operating Temperature -30℃~50℃ Flammability UL94 V-0 Ingress Protection IP65 Operating Temperature -30℃~50℃ Mechanical Characteristics Mating Cycles ≥10000 Mating Cycles ≥10000 Renhotec is a manufacturer specializing in EV charging products. In addition to production, our company has design and r&d departments. Our main products are EV charging stations, EV cables, and EV connectors. Along with the regular products, we also offer product customization services upon request to meet the local market preferences and needs. EV Charging Connector Adapter There are currently three DC fast plugs: CHAdeMO, SAE Combo (CCS), GB(Guobiao from China), and Tesla supercharger plug. All mainstream electric models produced today are compatible with SAE J1772 charging stations. But Tesla vehicles need a charging adapter to use these standard stations. The EV charging adapter is suitable for converting different standard EV charging sockets, such as Tesla, to a J-Plug adapter. An Electric Vehicle charging adapter is useful when you drive your Tesla vehicle without Tesla Charger compatible.
