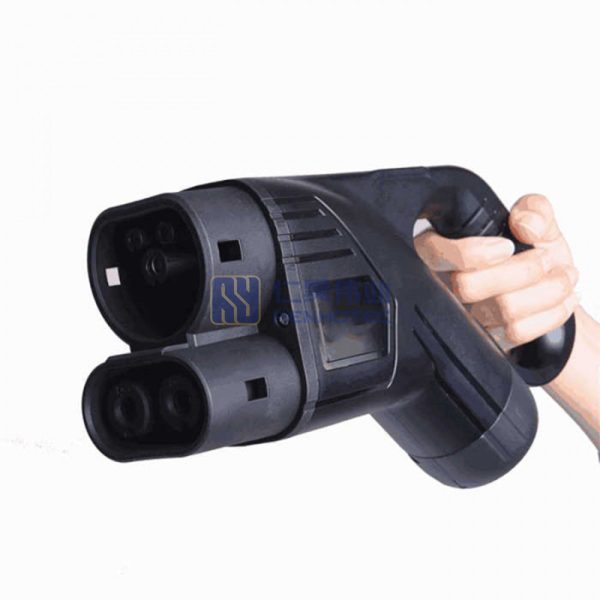

IEC CCS COMBO2 DC Charging Plug 150A 1000V EV Charger Single-phase EV Car for Vehicle End

Product Type Connector Type Plug Rated Type DC Power Phase Single Phase Shell Material Themoplastic Connector Type Plug Rated Type DC Power Phase Single Phase Shell Material Themoplastic Electrical Characteristics Rated Current 150A Rated Voltage 1000V Contact Resistance 0.5MΩ MAX Insulation Resistance ＞2000MΩ(DC1000V) Operating Voltage 1000V DC Withstand Voltage 3200V Rated Current 150A Rated Voltage 1000V Contact Resistance 0.5MΩ MAX Insulation Resistance ＞2000MΩ(DC1000V) Operating Voltage 1000V DC Withstand Voltage 3200V Standards and Specifications Charging Standards IEC 62196-3 Charging Standards IEC 62196-3 Contact Type Contact Finish Silver Plating Contact Material Copper Alloy Contact Finish Silver Plating Contact Material Copper Alloy Environmental Characteristics Flammability UL94 V-0 Ingress Protection IP65 Operating Temperature -30℃~50℃ Flammability UL94 V-0 Ingress Protection IP65 Operating Temperature -30℃~50℃ Mechanical Characteristics Mating Cycles ≥10000 Mating Cycles ≥10000 Renhotec is a manufacturer specializing in EV charging products. In addition to production, our company has design and r&d departments. Our main products are EV charging stations, EV cables, and EV connectors. Along with the regular products, we also offer product customization services upon request to meet local market preferences and needs. CCS COMBO1 Standard Connector The Combined Charging System (CCS) is a standard for charging electric vehicles. It can use Combo 1 or Combo 2 connectors to provide power at up to 350 kilowatts. These two connectors are extensions of the IEC 62196 Type 1 and Type 2 connectors, with two additional direct currents (DC) contacts to allow high-power DC fast charging. The Combined Charging System allows AC charging using the Type 1 and Type 2 connector depending on the geographical region. Since 2014 the European Union has required the provision of Type 2 or Combo 2 within the European electric vehicle charging network. This charging environment encompasses charging couplers, charging communication, charging stations, the electric vehicle, and various functions for the charging process such as load balancing and charge authorization. Electric vehicles or electric vehicle supply equipment (EVSE) are CCS-capable if they support either AC or DC charging according to the standards listed by the CCS. CCS Drawing
