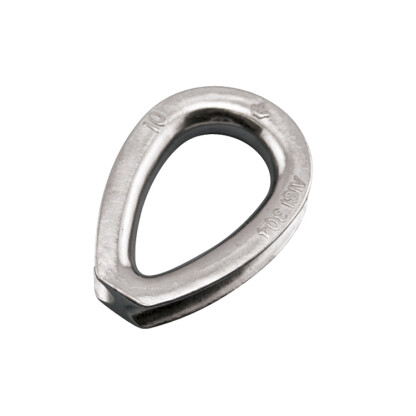

Description Stainless Steel Extra Heavy Duty Thimble SS3o4 1 in. Grade: 304 Stainless Steel Marine offers stainless steel thimbles components for architectural and marine applications. These stainless steel thimbles will satisfy your expectations and exceed them as-well. Stainless Steel Marine has the broadest range of stainless thimbles to accommodate every marine hardware requirement. The Thimbles are provided in multiple sizes ranging from 3/16 ” to 1″. These Thimbles re compressed of grade 304 stainless steel for extreme corrosion resistance and durable fortification, having it exemplary for a menagerie marine and architectural purposes. Heavy Duty Thimble Marine Grade Stainless Steel 316 Drawing ITEM A (size) B C D X Y Z WT (lb) S0123-XH06 1/4″ 0.67″ 1.51″ 0.06″ 1.23″ 1.69″ 0.43″ 0.06 S0123-XH08 5/16″ 0.97″ 2.09″ 0.08″ 1.59″ 2.29″ 0.50″ 0.12 S0123-XH10 3/8″ 1.11″ 2.47″ 0.06″ 1.81″ 2.65″ 0.55″ 0.20 S0123-XH13 1/2″ 1.46″ 3.13″ 0.08″ 2.34″ 3.34″ 0.64″ 0.31 S0123-XH16 5/8″ 1.86″ 4.07″ 0.15″ 2.95″ 4.33″ 0.90″ 0.79 S0123-XH20 3/4″ 2.39″ 4.54″ 0.10″ 3.52″ 4.88″ 0.93″ 0.81 S0123-XH22 7/8″ 2.52″ 4.65″ 0.10″ 3.84″ 5.04″ 1.06″ 1.05 S0123-XH25 1″ 2.95″ 5.19″ 0.13″ 4.55″ 5.72″ 1.25″ 1.46
