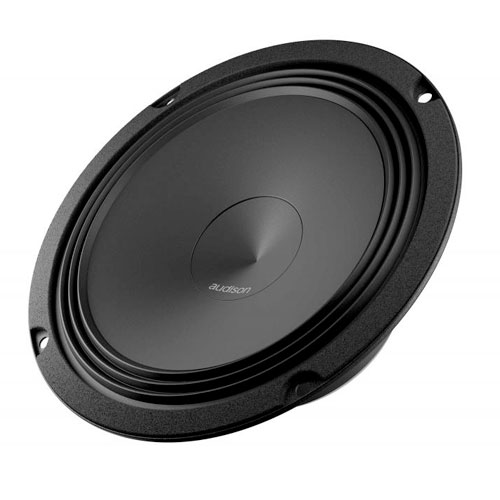

Audison Prima AP 6.5

Description AP 6.5 AP 6.5 feature a 32 mm pure copper voice coil, for high power handling and outstanding low frequency control. All the woofer don’t employ any filter, to maximize efficiency: the dome profile has been optimised with Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency. The surround features the exclusive shallow “Triple Wave” profile, for maximum excursion linearity. Tecnical Data Comp Woofer Size 165 mm (6,5″) Power Handling 70 W Continuous Power 210 W Peak Power Impedance 4 Ω Frequency Response 60 ÷ 5k Hz Sensitivity 93,5 dB/Spl Magnet High density flux ferrite Dome Water-repellent treated paper cone   32 mm pure copper mobile voice coil, for high power handling and outstanding low frequency control. Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer. No passive crossover required to maximize efficiency: the cone is optimised with the Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency. Reduced mounting depth, providing ease of installation in OEM placements. TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity. Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive. High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits. Developed with the KLIPPEL suite.
