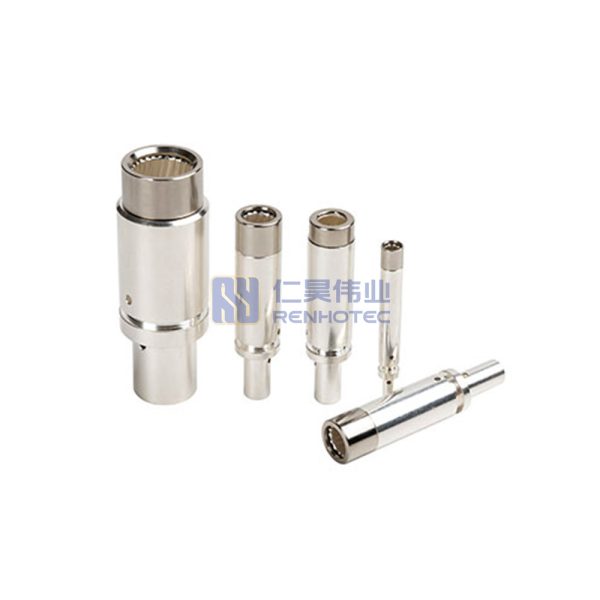

Charging Pin Connector For GB/T EV Charging Plug

Product Type Series AC GB, DC GB Item CC2 Terminal, LN Terminal, PE Terminal, CC Terminal, CC1 Terminal Material Brass, Copper Diameter 3mm, 6mm, 12mm Function Signal, Earthing Series AC GB, DC GB Item CC2 Terminal, LN Terminal, PE Terminal, CC Terminal, CC1 Terminal Material Brass, Copper Diameter 3mm, 6mm, 12mm Function Signal, Earthing Electrical Characteristics Rated Current 16A, 32A, 63A, 125A, 200A, 250A Rated Voltage 1000V/DC Rated Current 16A, 32A, 63A, 125A, 200A, 250A Rated Voltage 1000V/DC Contact Type Contact Material Beryllium Bronze Contact Finish Gold Plating, Silver Plating Contact Material Beryllium Bronze Contact Finish Gold Plating, Silver Plating Mechanical Characteristics Mating Cycles ≥10000 Mating Cycles ≥10000 Environmental Characteristics Operating Temperature -40℃~125℃ Operating Temperature -40℃~125℃ The machining terminal generally adopts a cylindrical structure, primarily using the female terminal as an elastic structure, and its current transmission method usually adopts the form of a crown spring, hyperboloid spring, and lamella spring and the coating is applying silver material. Automotive hard silver plating technology is able to be working on every charging interface. And this hard silver plating technology can effectively extend the service life of car. Charging Pin Connector For GB/T EV Charging Plug Product Code Item Rated current and function Dimension（mm） RHT-GBAC-LN LN terminal 250A/200A/125A/80A 12mm RHT-GBAC-PE PE terminal Earthing 6mm RHT-GBAC-CC1 CC1 terminal Signal 3mm RHT-GBAC-CC2 CC2 terminal Signal 3mm RHT-GBDC-LN LN terminal 200A/32A/16A 6mm RHT-GBDC-PE PE terminal 63A/32A/16A 6mm RHT-GBDC-CC CC terminal Signal 3mm Product Type Application
