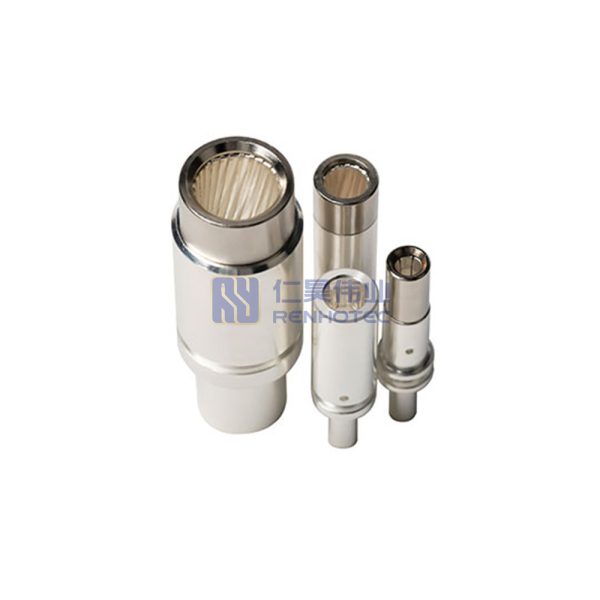

CCS Type 2 Contact Pins

Product Type Item LN Terminal, PE Terminal, CC Terminal Material Brass, Copper Diameter 3mm, 6mm, 8mm Function Signal, Earthing Item LN Terminal, PE Terminal, CC Terminal Material Brass, Copper Diameter 3mm, 6mm, 8mm Function Signal, Earthing Electrical Characteristics Rated Current 125A, 150A, 200A Rated Voltage 1000V/DC Rated Current 125A, 150A, 200A Rated Voltage 1000V/DC Contact Type Contact Material Beryllium Bronze Contact Finish Gold Plating, Silver Plating Contact Material Beryllium Bronze Contact Finish Gold Plating, Silver Plating Mechanical Characteristics Mating Cycles ≥10000 Mating Cycles ≥10000 Environmental Characteristics Operating Temperature -40℃~125℃ Operating Temperature -40℃~125℃ The machining terminal generally adopts a cylindrical structure, primarily using the female terminal as an elastic structure, and its current transmission method usually adopts the form of a crown spring, hyperboloid spring, and lamella spring and the coating is applying silver material. Automotive hard silver plating technology is able to be working on every charging interface. And this hard silver plating technology can effectively extend the service life of car. CCS Type 2 Contact Pins Product Code Item Rated current and function Dimension（mm） RHT-CCS2-LN LN terminal 200A/150A/125A 8mm RHT-CCS2-PE PE terminal Earthing 6mm RHT-CCS2-CC CC terminal Signal 3mm Product Type Application
