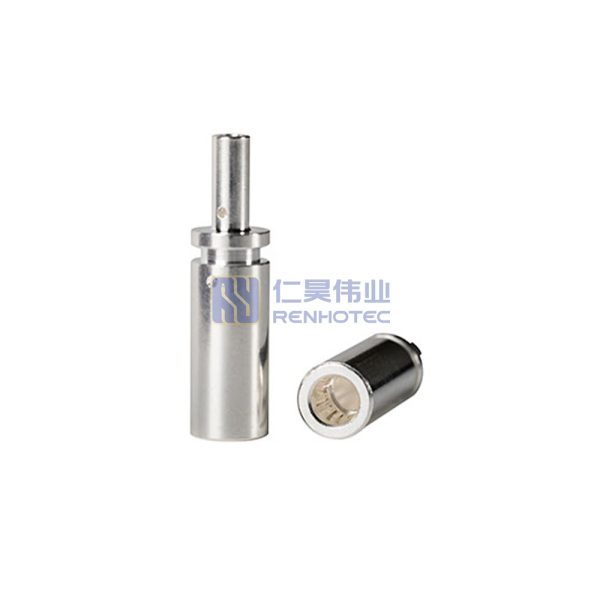

30A-250A Crown Spring Pins

Electrical Characteristics Rated Current 30A, 60A, 150A, 200A, 250A Rated Voltage 1000V/DC Contact Resistance ≤0.1mΩ, ≤0.15mΩ, ≤0.2mΩ, ≤0.8mΩ Rated Current 30A, 60A, 150A, 200A, 250A Rated Voltage 1000V/DC Contact Resistance ≤0.1mΩ, ≤0.15mΩ, ≤0.2mΩ, ≤0.8mΩ Product Type Material Brass, Copper Diameter 3mm, 6mm, 8mm, 10mm, 12mm Material Brass, Copper Diameter 3mm, 6mm, 8mm, 10mm, 12mm Contact Type Contact Material Beryllium Bronze Contact Finish Gold Plating, Silver Plating Contact Material Beryllium Bronze Contact Finish Gold Plating, Silver Plating Mechanical Characteristics Mating Cycles ≥10000 Pulling Force ≤(3-9N), ≤(7-21N), ≤(10-30N), ≤(15-45N) Mating Cycles ≥10000 Pulling Force ≤(3-9N), ≤(7-21N), ≤(10-30N), ≤(15-45N) Environmental Characteristics Operating Temperature -40℃~125℃ Operating Temperature -40℃~125℃ The machining terminal generally adopts a cylindrical structure, primarily using the female terminal as an elastic structure, and its current transmission method usually adopts the form of a crown spring, hyperboloid spring, and lamella spring and the coating is applying silver material. Automotive hard silver plating technology is able to be working on every charging interface. And this hard silver plating technology can effectively extend the service life of car. Crown Spring Pins Product Code Rated Current Dimension（mm） Contact Resistance Pulling Force ≤ (N) RHT-CS-30 30A 3mm ≤0.2mΩ ≤(3-9N) RHT-CS-60 60A 6mm ≤0.15mΩ ≤(7-21N) RHT-CS-150 150A 8mm ≤0.1mΩ ≤(10-30N) RHT-CS-200 200A 10mm ≤0.8mΩ ≤(15-45N) RHT-CS-250 250A 12mm ≤0.8mΩ ≤(15-45N) Product Type Application
