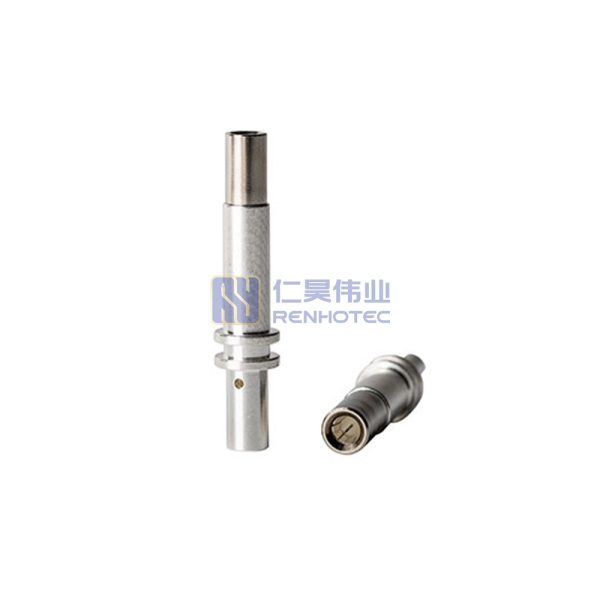

16A 32A Lamella Contact Pins

Product Type Item LN Terminal, PE Terminal Material Brass, Copper Diameter 2.78mm, 3.58mm Item LN Terminal, PE Terminal Material Brass, Copper Diameter 2.78mm, 3.58mm Electrical Characteristics Rated Current 16A, 32A Rated Voltage 1000V/DC Contact Resistance 0.5MΩ MAX Rated Current 16A, 32A Rated Voltage 1000V/DC Contact Resistance 0.5MΩ MAX Contact Type Contact Material Beryllium Bronze Contact Finish Gold Plating, Silver Plating Contact Material Beryllium Bronze Contact Finish Gold Plating, Silver Plating Mechanical Characteristics Mating Cycles ≥10000 Pulling Force ≤(10-15N) Mating Cycles ≥10000 Pulling Force ≤(10-15N) Environmental Characteristics Operating Temperature Max120℃ Operating Temperature Max120℃ The machining terminal generally adopts a cylindrical structure, primarily using the female terminal as an elastic structure, and its current transmission method usually adopts the form of a crown spring, hyperboloid spring, and lamella spring and the coating is applying silver material. Automotive hard silver plating technology is able to be working on every charging interface. And this hard silver plating technology can effectively extend the service life of car. Lamella Contact Pins Product Code Rated Current Dimension（mm） Contact Resistance Pulling Force ≤ (N) MAX Time（H） RHT-LCP-LN-32 32A 3.58mm ≤0.5mΩ ≤(10-15N) 8H RHT-LCP-PE-16 16A 2.78mm RHT-LCP-PE-32 32A 2.78mm Product Type Application
