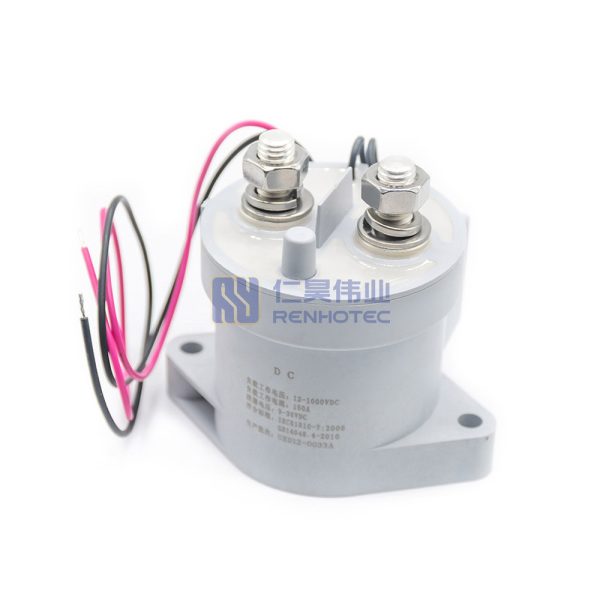

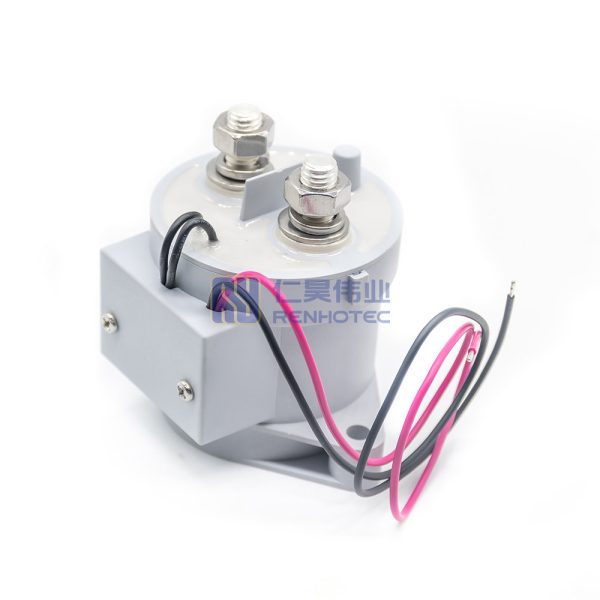

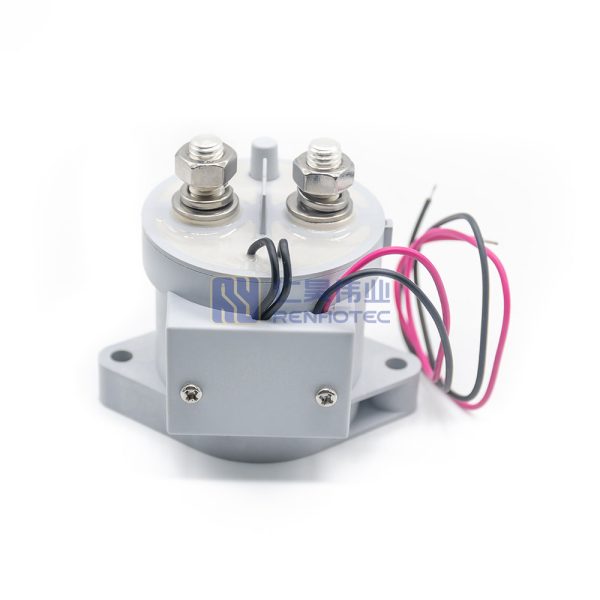

High Voltage DC Contactor SPST-NO 48V COIL 150A

Product Type Sealing Type Epoxy Resin Contact Arrangement 1H(SPST-NO) Power Connection Stud Terminals Coil Connection Flying Leads Sealing Type Epoxy Resin Contact Arrangement 1H(SPST-NO) Power Connection Stud Terminals Coil Connection Flying Leads Contact Type Contact Material Silver-plated Copper Contact Material Silver-plated Copper Electrical Characteristics Rated Current 150A Rated Voltage 12-1000V Rated Power 1.7W Coil Voltage 9-36V DC Contact Resistance ≤0.2MΩ(6V DC/20A) Max. Switch Current 2000A(320V DC) Operating Voltage 8V-9V DC Release Voltage 6V-7V DC Rated Current 150A Rated Voltage 12-1000V Rated Power 1.7W Coil Voltage 9-36V DC Contact Resistance ≤0.2MΩ(6V DC/20A) Max. Switch Current 2000A(320V DC) Operating Voltage 8V-9V DC Release Voltage 6V-7V DC Environmental Characteristics Operating Temperature -40℃~85℃ Operating Temperature -40℃~85℃ High Voltage DC Contactor The contacts of high-voltage DC contactors are designed to handle the high current levels of the system without overheating or arcing. They are typically spring-loaded to ensure that they remain in contact during operation and have a large surface area to ensure a low resistance path for the current. The contacts are also designed to be easily replaceable in the event of damage or wear. High Voltage DC Contactor – Wiring Diagram The wiring diagram of the high-voltage DC contactor can be described as follows. The wiring diagram includes the input and output terminals. Applications Featuring a magnetic arc blowout design and IP67 sealed, gas-filled chamber. Renhotec High Voltage DC Contactor Relay was developed for the below applications: Battery Electric Vehicles (BEV) Hybrid Electric Vehicles (HEV) DC Charging Station Energy Storage System
