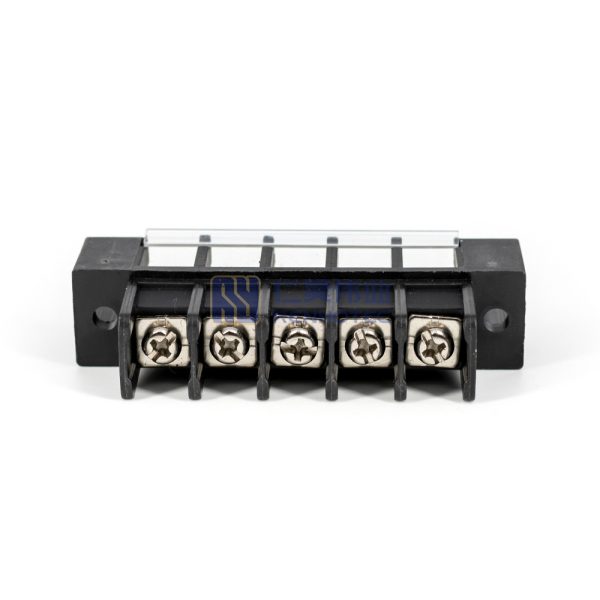

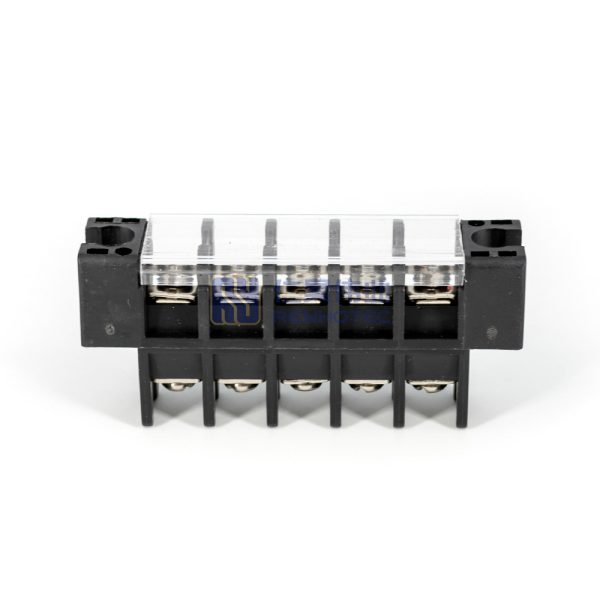

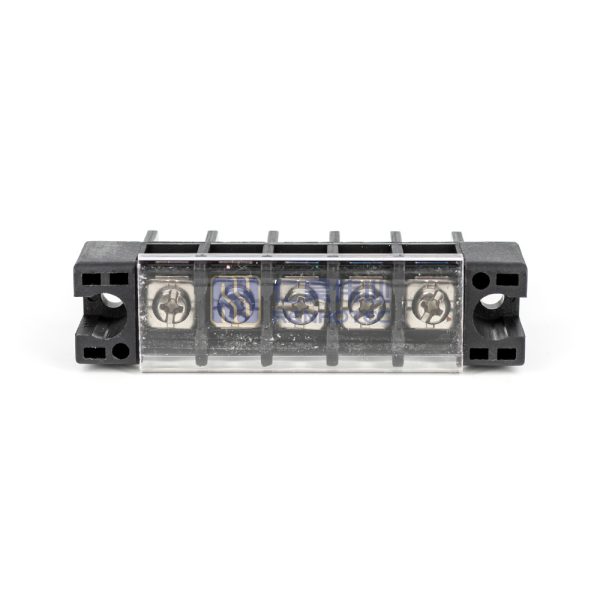

Panel Feed Through Terminal Block 5 Pin 30A 600V

Product Type Orientation Straight Number of Input Positions 5 Number of Output Positions 5 Color Black Mounting Type Panel Mount Docking Method Thread Terminal Block Type Bulkhead Terminal Block Top Termination Screw with Fastening Plate Bottom Termination Screw Terminal Material Cooper Insulation Material PBT Pitch 11mm Wire Gauge 2.5mm²-4mm² Orientation Straight Number of Input Positions 5 Number of Output Positions 5 Color Black Mounting Type Panel Mount Docking Method Thread Terminal Block Type Bulkhead Terminal Block Top Termination Screw with Fastening Plate Bottom Termination Screw Terminal Material Cooper Insulation Material PBT Pitch 11mm Wire Gauge 2.5mm²-4mm² Electrical Characteristics Rated Current 30A Rated Voltage 600V Withstand Voltage Value AC 3000V Insulation Resistance DC 500V 1000MΩ or more Rated Current 30A Rated Voltage 600V Withstand Voltage Value AC 3000V Insulation Resistance DC 500V 1000MΩ or more Environmental Characteristics Operating Temperature -40℃～105℃ Relative Humidity 5% to 95% Flammability V0 Operating Temperature -40℃～105℃ Relative Humidity 5% to 95% Flammability V0 WHY CHOOSE OUR PANEL FEED-THROUGH BARRIER TERMINAL? Engineered for new energy applications, our Panel Feed-Through Barrier Terminal blocks deliver secure power transmission. With a 600V rating, up to 200A capacity, and premium PBT insulation, they ensure safety and reliable integration for energy storage and industrial systems. High-Capacity Power Transmission Engineered for demanding systems, these terminals reliably handle 30A to 200A at 600V. High-quality copper cores minimize contact resistance and prevent dangerous heat build-up under heavy loads. Superior Insulation & Safety Molded from premium PBT, the housing offers excellent thermal stability and electrical insulation. Combined with a UL94 V-0 flame rating and a transparent cover, it prevents accidental touch hazards while enabling easy visual inspections. Secure Panel Feed-Through Design This standardized design ensures robust, vibration-resistant mounting across bulkheads. Supporting broad wire gauges up to 2/0 AWG (80mm²), it streamlines wiring and enhances connection reliability in complex industrial layouts. APPLICATIONS Engineered for seamless power routing across equipment bulkheads, our Panel Feed-Through Barrier Terminals are widely integrated into commercial Energy Storage Systems (ESS), solar inverters, and high-voltage Power Distribution Units (PDUs). Their robust high-current capacity and secure, vibration-resistant mounting make them an ideal choice for industrial control panels, motor drives, and any application requiring safe, reliable wire-to-wire connections through enclosure panels. Industrial Power Supplies & PDUs Telecom Power Systems Rack-Mounted Battery Packs (ESS) BUILD AND REQUEST YOUR PART NUMBER As a group-level source manufacturer, Renhotec offers an extensive range of J29A series connectors. The chart below demonstrates our full manufacturing capabilities. You can find the corresponding meaning of each segment on your existing part numbers. RHT PG 22 11 16.0 02P C RHT Brand Name PG 22 11 16.0 02P C Series Code: Conductor Range: 2.5mm² to 80mm² Wire Cross-Section (mm²): Range: 2.5mm² to 80mm² Mold Version: Internal tooling / mold revision identifier Pitch (mm): Available: 11mm / 13mm / 16mm / 21mm / 27mm Number of Poles: Available: 2P / 3P / 4P / 5P Internal Identification Code Not Sure Which Configuration You Need? Skip the Complexity! Whether you are looking for a cross-reference for an existing part number, or just have a rough BOM, simply send it to us.? Our engineering team will match the exact connector and provide a competitive quote within 24 hours. Send BOM & Get Quote! COMPLIANCE & CERFITICATIONS All certifications listed below are held by Renhotec or our verified manufacturing facilities, ensuring full compliance with international automotive and safety standards. IATF-16949 ISO 9001 Cerfitied CE Compliance RoHS Compliant TUV Safety Tested FAQ What is the maximum wire gauge supported by these terminal blocks? To handle the maximum 200A continuous current safely, these terminals support a wide range of wire gauges up to 2/0 AWG (80mm²). This ensures minimal contact resistance and highly secure power transmission under heavy loads. How does the panel feed-through design benefit my equipment assembly? The standardized feed-through design allows power to be securely and neatly routed directly across enclosure bulkheads. It provides a robust, vibration-resistant mounting solution that maintains the structural integrity of your panels while significantly simplifying both internal and external wiring processes. Are these terminal blocks suitable for outdoor Energy Storage Systems (ESS) with fluctuating temperatures? Yes. The premium PBT insulation provides excellent thermal stability, supporting a reliable operating temperature range from -40°C to 105°C. It will not become brittle in extreme cold or deform under standard operational heat. However, please note that the terminal block itself is unsealed, so the external equipment enclosure must provide the necessary IP waterproof rating for outdoor applications. What pole (position) configurations are available for this series? Currently, this series of panel feed-through barrier terminals is available in 2 to 5 position (pole) configurations. This selection effectively covers the majority of standard power distribution requirements in energy storage and industrial control layouts. Please contact our engineering team to specify the exact pole count needed for your project. What is the standard lead time for your connectors? For in-stock items, orders are typically processed and shipped within 1-2 business days. For standard configurations requiring new production, our agile manufacturing capabilities allow us to deliver in as fast as 7 to 14 days. We recommend contacting our sales team to verify real-time inventory for your specific Part Number. How can I get technical datasheets or request product samples for evaluation? You can easily request comprehensive product specifications and test samples by clicking the “Inquiry” or “Live Chat” button on our page. Our technical sales team will respond promptly to support your project design. OEM/ODM CUSTOMIZATION PROCESS Renhotec provides a comprehensive One-Stop Solution from concept to mass production. Please note that project timelines scale with the complexity of your design - ranging from rapid modifications of standard connectors to fully bespoke mold developments. A swift and successful product rollout is a collaborative partnership. We work closely with your engineers, and the overall lead time relies heavily on timely feedback and prompt sample validation from your team. 01 DemandProvision Initial Consultation 02 FeasibilityAnalysis Within 24 Hours 03 Quotation &Contract 1-2 Business Days 04 MoldDesign 5-10 Business Days 05 Raw MaterialPreparation 1-2 Business Days 06 Trial MoldSampling 1 Business Day 07 MassProduction 5-7 Business Days 08 Delivery &After-sales 5-15 Business Days For detailed technical specifications & official price lists, or specialized connectivity solutions, please complete the form below.? Our sales engineers will review your requirements and respond within 24 hours.
