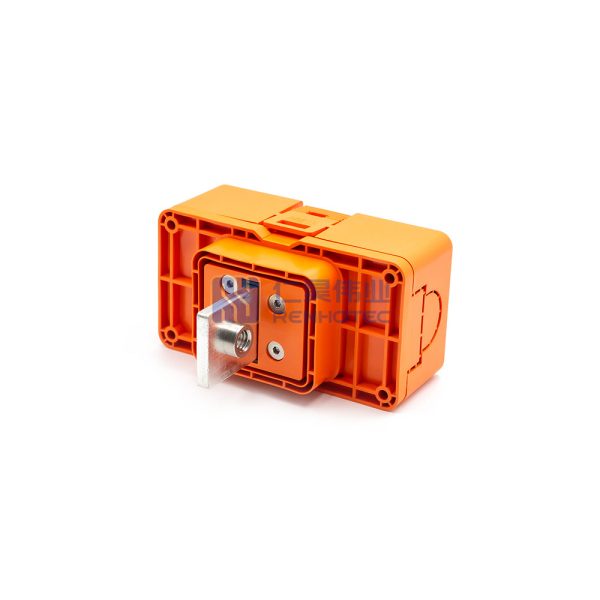

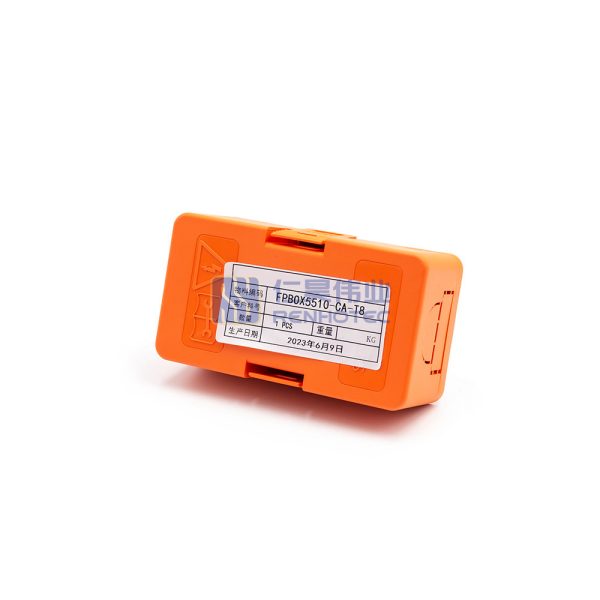

500A Waterproof High Voltage Battery Box Connector Orange

Product Type Body Style Square Inside Thread M8 Termination Method Busbar Mounting Type Panel Mount Shell Material Plastic Color Orange Body Style Square Inside Thread M8 Termination Method Busbar Mounting Type Panel Mount Shell Material Plastic Color Orange Electrical Characteristics Rated Voltage 1500V Rated Current 500A Insulation Resistance ≥5000MΩ Test Voltage 3000VDC Rated Voltage 1500V Rated Current 500A Insulation Resistance ≥5000MΩ Test Voltage 3000VDC Contact Type Contact Material Copper Alloy Contact Finish Tin Plating Contact Material Copper Alloy Contact Finish Tin Plating Environmental Characteristics Ingress Protection IPXXB（Mated） Operating Temperature -40℃~125℃ Flammability UL94 V-0 Salt Spray Resistance 48H Ingress Protection IPXXB（Mated） Operating Temperature -40℃~125℃ Flammability UL94 V-0 Salt Spray Resistance 48H WHY CHOOSE OUR THROUGH WALL POWER TERMINALS? Breaking standard 600V/200A market limits, our Through-Wall Power Terminals deliver up to 600A/1000V capacity and 125°C automotive-grade thermal tolerance. With UL94 V-0 materials and IP67 sealing, they provide a future-proof, robust connection for modern ESS, EV batteries, and heavy-duty applications. 600A/1000V High-Power Capacity Outperforming standard 200A terminals, this series supports up to 600A continuous current and 1000V. It provides essential power headroom for demanding high-voltage battery and rapid-charging architectures. 125°C Automotive Thermal Tolerance Exceeding the typical 105°C industrial limit, our PA66/PBT housing safely operates up to 125°C. This critical safety buffer prevents thermal degradation under continuous high-current loads. Panel-Integrated IP67 Sealing Select models feature robust IP67 waterproof and dustproof bulkhead seals. This secures panel cutouts against moisture ingress, ensuring safe high-voltage isolation for exposed outdoor equipment. Vibration-Resistant M4-M12 Mounting Offering M4 to M12 thread options for diverse cable lugs, the secure bolted fastening guarantees ultra-low contact resistance and highly vibration-proof connections in mobile environments. APPLICATIONS Engineered for seamless high-voltage integration, our Through-Wall Power Terminals are widely utilized in commercial Energy Storage Systems (ESS), Electric Vehicle (EV) battery enclosures, and heavy-duty Power Distribution Units (PDUs). By providing a secure, weather-resistant, and low-loss bulkhead connection, they are the ideal choice for engineers developing reliable power routing architectures in RVs, marine applications, and off-grid power stations. Commercial Energy Storage Systems (ESS) ?EV Battery Enclosures & RV Power Megawatt-Scale Commercial & Industrial ESS BUILD AND REQUEST YOUR PART NUMBER As a group-level source manufacturer, Renhotec offers an extensive range of Through Wall Power Terminals. The chart below demonstrates our full manufacturing capabilities. You can find the corresponding meaning of each segment on your existing part numbers. Part NO Body Style Inside Thread Termination Method Rated Voltage Rated Current Test Voltage Shell Material Contact Material Contact Finish FBOX01-CN-70S-M-RH / M10 Screw 1000V 300A 3000V DC Aluminum Alloy Nickel Plating Copper Alloy Tin Plating FB0X3R1-HA-70S-M-RH FB0X3L1-CA-70S-M-RH / Square M8 1500V 18KV DC Plastic / FPB0X5510-CA-T8-RH Busbar 500A 3000V DC FPB0X5510-HA-T8-RH FPB0X12K6-CA-H6-RH M6 200A FPB0X12K6-HA-H6-RH Not Sure Which Configuration You Need? Skip the Complexity! Whether you are looking for a cross-reference for an existing part number, or just have a rough BOM, simply send it to us.? Our engineering team will match the exact connector and provide a competitive quote within 24 hours. Send BOM & Get Quote! COMPLIANCE & CERFITICATIONS All certifications listed below are held by Renhotec or our verified manufacturing facilities, ensuring full compliance with international automotive and safety standards. IATF-16949 ISO 9001 Cerfitied CE Compliance RoHS Compliant TUV Safety Tested FAQ What kind of battery is this terminal suitable for? Suitable for:1. Lithium – ion battery packs (e – bikes, energy storage systems, etc.)2. Lead – acid batteries (industrial starting, backup power supplies)3. Special – purpose batteries (high – power batteries for forklifts, AGVs) What are the DC and AC voltage ratings of the terminals? 1000V DC & 1000V AC. What is the maximum achievable current? Standard current range: 60A – 500A; some models can reach up to 600A. What is the installation method? Panel – mounted, with mounting styles including Busbar, inner screw, outer screw, etc. What is the contact material? Available in brass or copper options. Generally, brass is used for currents below 300A, while copper is used for currents above 300A. What is the outer shell plastic material and how is the flamability? Housing: PA66 material; Flamability rating is UL94 -V0. What is the standard lead time for your connectors? For in-stock items, orders are typically processed and shipped within 1-2 business days. For standard configurations requiring new production, our agile manufacturing capabilities allow us to deliver in as fast as 7 to 14 days. We recommend contacting our sales team to verify real-time inventory for your specific Part Number. How can I get technical datasheets or request product samples for evaluation? You can easily request comprehensive product specifications and test samples by clicking the “Inquiry” or “Live Chat” button on our page. Our technical sales team will respond promptly to support your project design. OEM/ODM CUSTOMIZATION PROCESS Renhotec provides a comprehensive One-Stop Solution from concept to mass production. Please note that project timelines scale with the complexity of your design - ranging from rapid modifications of standard connectors to fully bespoke mold developments. A swift and successful product rollout is a collaborative partnership. We work closely with your engineers, and the overall lead time relies heavily on timely feedback and prompt sample validation from your team. 01 DemandProvision Initial Consultation 02 FeasibilityAnalysis Within 24 Hours 03 Quotation &Contract 1-2 Business Days 04 MoldDesign 5-10 Business Days 05 Raw MaterialPreparation 1-2 Business Days 06 Trial MoldSampling 1 Business Day 07 MassProduction 5-7 Business Days 08 Delivery &After-sales 5-15 Business Days For detailed technical specifications & official price lists, or specialized connectivity solutions, please complete the form below.? Our sales engineers will review your requirements and respond within 24 hours.
