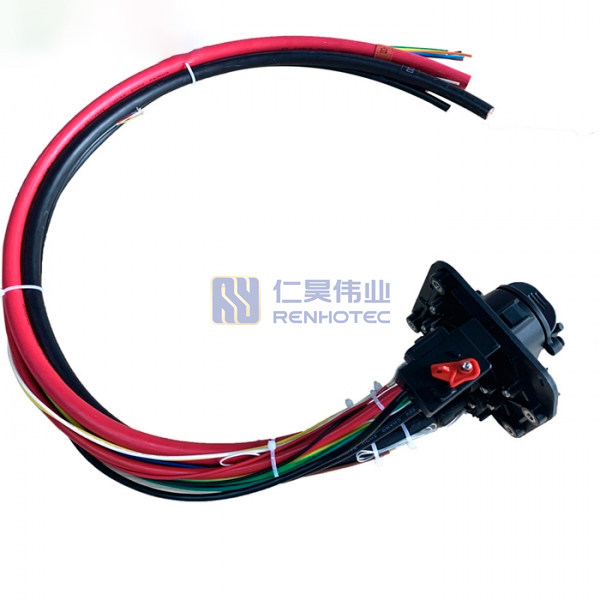

CCS COMBO1 125A 1000V Socket Connector Single Phase EV High Voltage Charger with 0.5 Meters Cable

Standards and Specifications Charging Standards SAE J1772 Charging Standards SAE J1772 Product Type Connector Type Socket Rated Type DC Power Phase Single Phase Shell Material Themoplastic Wire Gauge 2*35mm² 1*25mm² 6*0.75mm² Connector Type Socket Rated Type DC Power Phase Single Phase Shell Material Themoplastic Wire Gauge 2*35mm² 1*25mm² 6*0.75mm² Electrical Characteristics Rated Current 125A Rated Voltage 1000V Contact Resistance 0.5MΩ MAX Insulation Resistance ＞2000MΩ(DC1000V) Power 127kW Rated Current 125A Rated Voltage 1000V Contact Resistance 0.5MΩ MAX Insulation Resistance ＞2000MΩ(DC1000V) Power 127kW Contact Type Contact Material Copper Alloy Contact Finish Silver Plating Contact Material Copper Alloy Contact Finish Silver Plating Environmental Characteristics Flammability UL94 V-0 Operating Temperature -30℃~50℃ Ingress Protection IP65 Flammability UL94 V-0 Operating Temperature -30℃~50℃ Ingress Protection IP65 Renhotec is a manufacturer specializing in EV charging products. In addition to production, our company has design and r&d departments. Our main products are EV charging stations, EV cables, and EV connectors. Along with the regular products, we also offer product customization services upon request to meet local market preferences and needs. CCS COMBO1 Standard Connector The Combined Charging System (CCS) is a standard for charging electric vehicles. It can use Combo 1 or Combo 2 connectors to provide power at up to 350 kilowatts. These two connectors are extensions of the IEC 62196 Type 1 and Type 2 connectors, with two additional direct currents (DC) contacts to allow high-power DC fast charging. The Combined Charging System allows AC charging using the Type 1 and Type 2 connector depending on the geographical region. Since 2014 the European Union has required the provision of Type 2 or Combo 2 within the European electric vehicle charging network. This charging environment encompasses charging couplers, charging communication, charging stations, the electric vehicle, and various functions for the charging process such as load balancing and charge authorization. Electric vehicles or electric vehicle supply equipment (EVSE) are CCS-capable if they support either AC or DC charging according to the standards listed by the CCS. CCS Drawing
