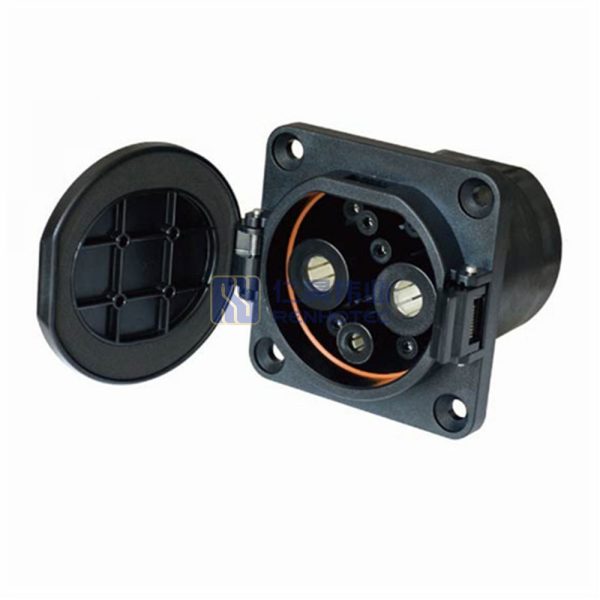

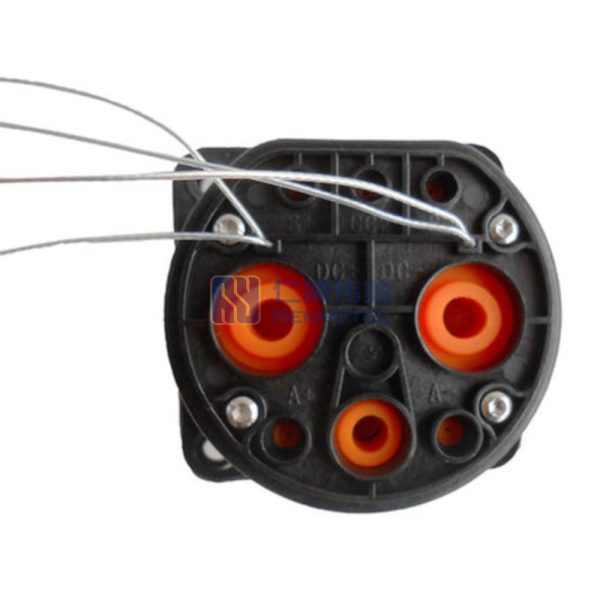

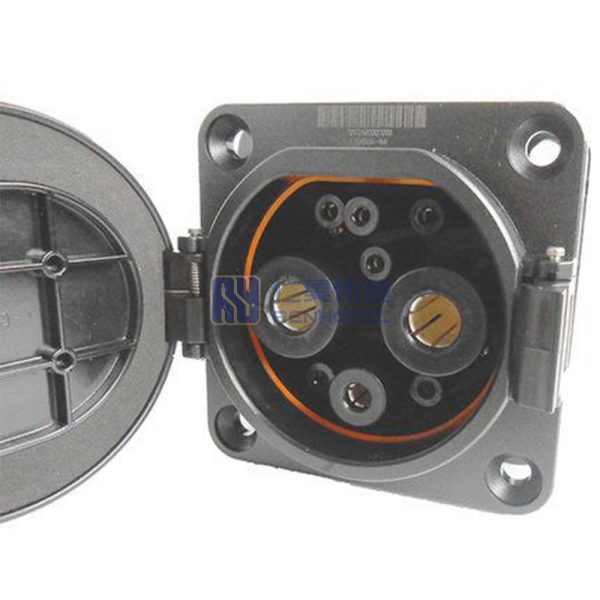

GBT DC 250A 750V EV High Voltage Connector Socket Single-phase EV Electric Car for Vehicle End

Product Type Connector Type Socket Rated Type DC Power Phase Single Phase Shell Material Themoplastic Color Black Application Vehicle End Connector Type Socket Rated Type DC Power Phase Single Phase Shell Material Themoplastic Color Black Application Vehicle End Electrical Characteristics Rated Current 250A Rated Voltage 750V Contact Resistance 0.5MΩ MAX Insulation Resistance >1000MΩ(DC500V) Withstand Voltage 5000V Power 187kW Rated Current 250A Rated Voltage 750V Contact Resistance 0.5MΩ MAX Insulation Resistance >1000MΩ(DC500V) Withstand Voltage 5000V Power 187kW Standards and Specifications Charging Standards GB/T 20234.2-2015 Charging Standards GB/T 20234.2-2015 Contact Type Contact Material Copper Alloy Contact Finish Silver Plating Contact Material Copper Alloy Contact Finish Silver Plating Environmental Characteristics Flammability UL94 V-0 Ingress Protection IP65 Operating Temperature -30℃~50℃ Flammability UL94 V-0 Ingress Protection IP65 Operating Temperature -30℃~50℃ Mechanical Characteristics Mating Cycles ≥10000 Mating Cycles ≥10000 Renhotec is a manufacturer specializing in EV charging products. In addition to production, our company has design and r&d departments. Our main products are EV charging stations, EV cables, and EV connectors. Along with the regular products, we also offer product customization services upon request to meet local market preferences and needs. GB/T DC Charging Connector The DC fast charging standard (GBT 20234.3) uses a different, larger connector that allows fast charging of up to 250 kW. It has a current of 80125200250A and a voltage of 750-1000V. However, chargers with 50 kW or other lower power ratings are more common. The minimum GBT voltage of 750V is usually retained, but with a different current rating. Some chargers may also follow the physical plug as specified in GBT 20234.3. However, it does not follow the GBT standard power limits and uses voltages below 750V, such as 500V. GB Standards DC Charging Connector The male vehicle connector has a flattened circular shape similar to that of the Type 2 connector used for single-phase AC charging. The DC charging connector specified in GBT 20234.3 has a nominal outer diameter of 65 mm (2.6 in); the flattened top reduces the top-to-bottom height to 60.8 mm (2.39 in). There are four pins for signaling two to provide charging confirmation (CC1 CC2) and two for communication via CAN bus (S S-). In addition, the GBT 20234.3 connector provides up to 600 W of auxiliary DC power at 30V20A (A A-). GB Standards DC Charging Connector Drawing
