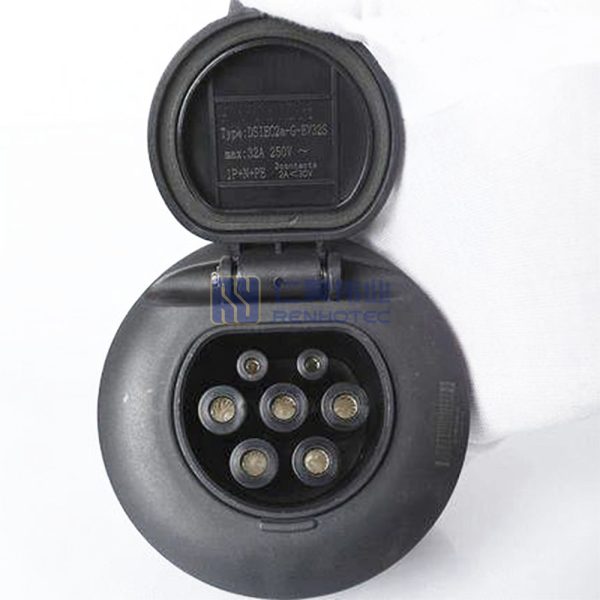

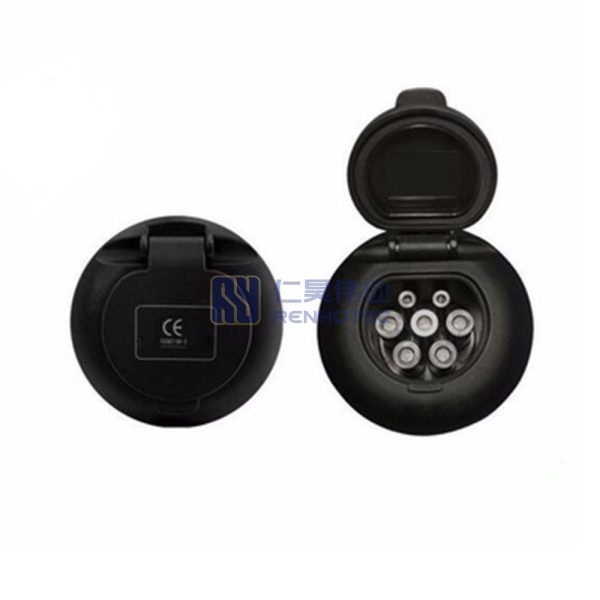

GB/T Standards AC 32A Socket EV Connect Chargers Single-phase 14kw for Electric Car Charging Pile

Product Type Connector Type Socket Rated Type AC Power Phase Single Phase Shell Material Themoplastic Color Black Application EV Charging Connector Connector Type Socket Rated Type AC Power Phase Single Phase Shell Material Themoplastic Color Black Application EV Charging Connector Electrical Characteristics Rated Current 32A Rated Voltage 750V Contact Resistance 0.5MΩ MAX Insulation Resistance >1000MΩ(DC500V) Power 14kW Withstand Voltage 2000V Rated Current 32A Rated Voltage 750V Contact Resistance 0.5MΩ MAX Insulation Resistance >1000MΩ(DC500V) Power 14kW Withstand Voltage 2000V Standards and Specifications Charging Standards GB/T 20234.2-2015 Charging Standards GB/T 20234.2-2015 Contact Type Contact Material Copper Alloy Contact Finish Silver Plating Contact Material Copper Alloy Contact Finish Silver Plating Environmental Characteristics Ingress Protection IP65 Flammability UL94 V-0 Operating Temperature -30℃~50℃ Ingress Protection IP65 Flammability UL94 V-0 Operating Temperature -30℃~50℃ Mechanical Characteristics Mating Cycles ≥10000 Mating Cycles ≥10000 Renhotec is a manufacturer specializing in EV charging products. In addition to production, our company has design and r&d departments. Our main products are EV charging stations, EV cables, and EV connectors. Along with the regular products, we also offer product customization services upon request to meet local market preferences and needs. GB/T AC Charging Connector The AC standard (GB/T 20234.2) uses male and female connectors physically compatible with the European Type 2 connector. But with different configurations and signaling. While the European implementation of Type 2 (IEC 62196-2 Type 2) uses a female connector and male vehicle inlet, GB/T 20234.2 specifies a male connector and female vehicle inlet. Both IEC 62196-2 Type 2 and GB/T 20234.2 specify a female socket outlet and male plug. In addition, GB/T 20234.2 uses CC/CP (charging confirmation and control pilot) signals, instead of PP/CP (proximity pilot and control pilot) signaling. For the male plug and connector ends, the shape is a flattened circle with a nominal outer diameter of 51 mm (2.0 in). The flattened section reduces this to 44 mm (1.7 in), measured from top to bottom. GB standard AC charging It allows Mode 2 (250V) or Mode 3 (440V) single-phase AC charging up to 8 or 27.7 kW, respectively. In Mode 2, power is supplied with a current of 10/16/32A and a voltage of 250V. In Mode 3, power is supplied with a current of 16/32/63A and a voltage of 440V. Although the seven-pin interface is capable of passing three-phase AC power, the current implementation is limited to single-phase power.
