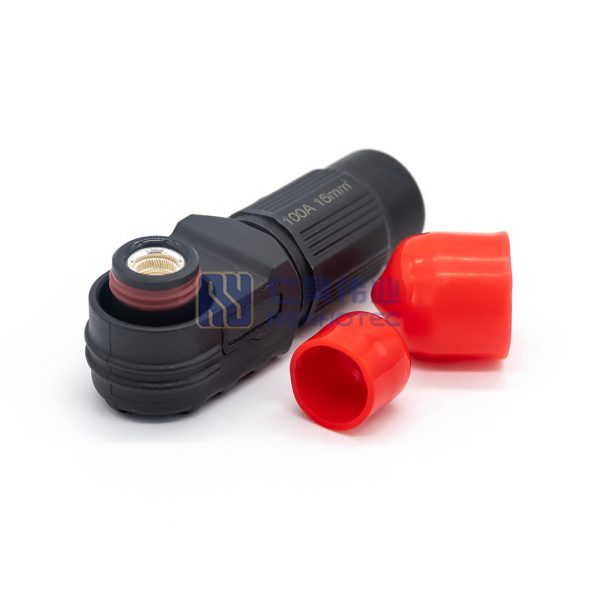

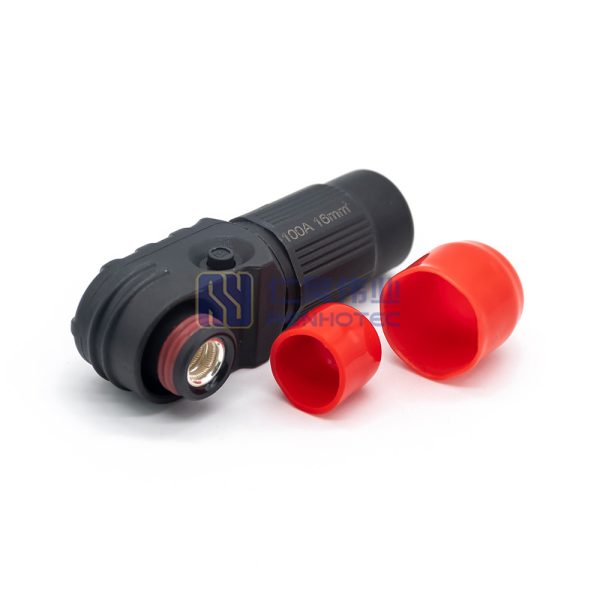

Energy Battery Storage Connector 100A Plug Right Angled 16mm2 Unshielded Cable 6.0mm Black

Product Type Terminal 6mm Connector Type Plug Orientation Right Angle Color Black Wire Gauge 16m㎡ Mounting Type Cable Mount Shell Material Nylon Terminal 6mm Connector Type Plug Orientation Right Angle Color Black Wire Gauge 16m㎡ Mounting Type Cable Mount Shell Material Nylon Electrical Characteristics Rated Current 100A Rated Voltage 1000V Insulation Resistance ≥1000MΩ Rated Current 100A Rated Voltage 1000V Insulation Resistance ≥1000MΩ Contact Type Contact Termination Crimp Contact Finish Silver Plating Contact Termination Crimp Contact Finish Silver Plating Environmental Characteristics Operating Temperature -40°C-125°C Flammability Rating UL94 V-0 Ingress Protection IP67 Operating Temperature -40°C-125°C Flammability Rating UL94 V-0 Ingress Protection IP67 Mechanical Characteristics Mating Cycles >500 Mating Cycles >500 WHY CHOOSE OUR BATTERY STORAGE CONNECTORS? Engineered specifically for energy storage systems, Renhotec battery storage connectors facilitate secure and efficient power transmission between battery modules, inverters, and ESS units. Rated for up to 1500V and current loads ranging from 60A to 480A, these IP67-rated connectors feature high-purity copper alloy contacts, built-in safety locks, and reverse polarity protection, ensuring long-term reliability and operational safety in harsh environments. Enhanced Safety with Error-Proof Design Safety is paramount in high-voltage energy storage. These connectors integrate built-in safety locks and reverse polarity protection to prevent mating errors during installation. This foolproof design ensures operator safety and minimizes the risk of short circuits or system damage in complex ESS setups. High-Capacity Power Transmission Rated for up to 480A and 1500V, these connectors are CAE-optimized for superior thermal management and dielectric strength. High-purity silver or gold-plated copper contacts minimize resistance, maximizing power efficiency and safely mitigating thermal risks under continuous heavy loads. IP67 Environmental Durability Energy storage systems are frequently deployed in demanding conditions. Rated at IP67 or higher, these connectors provide exceptional waterproof, dustproof, and corrosion-resistant performance. This robust construction ensures reliable, uninterrupted operation across both indoor cabinets and harsh outdoor power stations. Quick-Connect Modularity & Long Lifespan Featuring a modular, quick-connect interface, the FESconnector streamlines assembly and field maintenance processes. Engineered for longevity, it offers over 500 low-insertion-force mating cycles, enhancing overall usability while substantially reducing long-term maintenance and labor costs for terminal factories. APPLICATIONS Renhotec battery storage connectors are engineered to deliver secure, high-voltage interconnections across a wide spectrum of renewable energy infrastructure. They ensure reliable power transmission and system stability in critical applications, including commercial energy storage cabinets, utility-scale power stations, mobile energy storage vehicles, and photovoltaic (PV) power generation systems. Battery Energy Storage Systems (BESS) Photovoltaic (PV) Power Stations Mobile Energy Storage Vehicles FIND YOUR EXACT ENERTY STORAGE CONNECTOR We manufacture a comprehensive range of high-voltage Energy Storage Connectors for Commercial ESS, PV systems, and Mobile Energy Storage applications. Simply tell us your requirements: Current Rating: 60A, 120A, 200A, up to 480A Cable Size: 10mm², 16mm², 25mm², up to 150mm² System Voltage: Up to 1500V DC Configuration: Panel Mount Receptacle, Cable Plug, Busbar Terminal, or Crimp Color Coding & Keying: Orange / Black with foolproof keying options Submit your specifications below, and our engineering team will match you with the correct part number and provide a fast quote. Submit Your Specs COMPLIANCE & CERFITICATIONS All certifications listed below are held by Renhotec or our verified manufacturing facilities, ensuring full compliance with international automotive and safety standards. IATF-16949 ISO 9001 Cerfitied CE Compliance RoHS Compliant TUV Safety Tested FAQ What safety standards and certifications do your battery storage connectors meet? Safety is critical for 1500V high-voltage ESS applications. Our connectors are designed to meet rigorous industry standards, fully complying with TUV and CE requirements. Combined with their built-in safety locks and reverse polarity protection, they guarantee compliance and operational safety for global energy storage projects. What cable cross-sections are compatible with your energy storage connectors? To support various current loads across ESS applications, our connectors are designed to accommodate a comprehensive range of standard wire gauges. Specifically, they support 10mm², 16mm², 25mm², 35mm², and up to 150mm² cable cross-sections. This extensive compatibility ensures optimal crimping and secure termination for your specific system requirements. Can these connector interface be customized for specific battery modules or inverters? Yes, our energy storage connectors are highly customizable. Supported by our professional CAE simulation capabilities, our R&D team can swiftly adapt the connector interfaces, mounting styles, and housing designs to match your specific ESS architecture. This rapid prototyping ensures seamless integration and shortens your product’s time-to-market. How do these connectors perform in extreme temperature conditions? Built for demanding environments, our energy storage connectors feature a robust operating temperature range from -40°C to 125°C. Combined with an IP67 rating and low-resistance plated contacts that minimize thermal rise, they guarantee reliable and continuous power transmission even in severe outdoor climates or under extreme high-load conditions. What is the standard lead time for your connectors? For in-stock items, orders are typically processed and shipped within 1-2 business days. For standard configurations requiring new production, our agile manufacturing capabilities allow us to deliver in as fast as 7 to 14 days. We recommend contacting our sales team to verify real-time inventory for your specific Part Number. How can I get technical datasheets or request product samples for evaluation? You can easily request comprehensive product specifications and test samples by clicking the “Inquiry” or “Live Chat” button on our page. Our technical sales team will respond promptly to support your project design. OEM/ODM CUSTOMIZATION PROCESS Renhotec provides a comprehensive One-Stop Solution from concept to mass production. Please note that project timelines scale with the complexity of your design - ranging from rapid modifications of standard connectors to fully bespoke mold developments. A swift and successful product rollout is a collaborative partnership. We work closely with your engineers, and the overall lead time relies heavily on timely feedback and prompt sample validation from your team. 01 DemandProvision Initial Consultation 02 FeasibilityAnalysis Within 24 Hours 03 Quotation &Contract 1-2 Business Days 04 MoldDesign 5-10 Business Days 05 Raw MaterialPreparation 1-2 Business Days 06 Trial MoldSampling 1 Business Day 07 MassProduction 5-7 Business Days 08 Delivery &After-sales 5-15 Business Days For detailed technical specifications & official price lists, or specialized connectivity solutions, please complete the form below.? Our sales engineers will review your requirements and respond within 24 hours.
