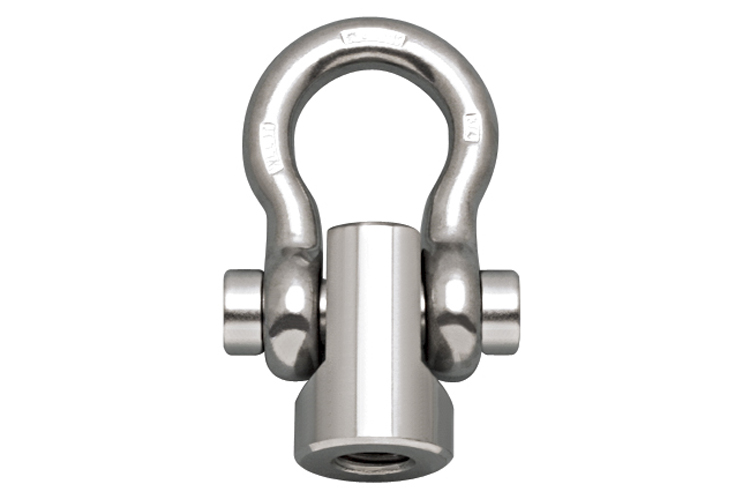

Stainless Steel ANCHOR BASE W/SHACKLE 1/4 in. 3/8-16 UNC 316SS

Description Stainless Steel Anchor Base With Shackle UNC Marine Grade 1/4 in. 3/8-16 UNC 316SS Grade: 316 Stainless  Steel Marine offers the Anchor Base with Shackle and also comes with the hoist anchor base and fixed shackle. This item is made from grade 316 stainless steel for extreme corrosion resistance and durable fortification, having it exemplary for a menagerie marine and architectural purposes.  Stainless Steel Marine has the broadest range of stainless shackles to accommodate every marine hardware requirement. The Anchor Base is typically utilized to attach lifting points to various objects with no existing or natural attachments. This item has a set screw for attaching it to the stud. These shackles have a 180 degree pivoting capacity and the base maybe attached in the appropriate orientation or position to accommodate the fullest range of movement and motion.   ITEM A B C (UNC thread) D E F X Y Z WLL (lb) WT (lb) S0116-HD07 0.31″ 1.00″ 3/8″-16 0.25″ 0.91″ 0.79″ 1.30″ 2.54″ 0.75″ 1,000 0.22 S0116-HD08 0.38″ 1.20″ 7/16″-14 0.30″ 0.99″ 0.81″ 1.72″ 2.92″ 0.88″ 1,300 0.35 S0116-HD10 0.44″ 1.50″ 1/2″-13 0.38″ 1.13″ 1.05″ 2.02″ 3.47″ 1.25″ 1,500 0.78 S0116-HD12 0.50″ 1.56″ 5/8″-11 0.42″ 1.14″ 1.14″ 2.39″ 3.97″ 1.38″ 2,000 1.05 S0116-HD13 0.63″ 1.59″ 3/4″-10 0.50″ 1.47″ 1.33″ 2.45″ 4.22″ 1.38″ 3,000 1.30 S0116-HD16 0.75″ 1.86″ 7/8″-9 0.63″ 2.00″ 1.67″ 3.02″ 5.29″ 1.75″ 4,000 2.64 S0116-HD20 0.88″ 2.00″ 1″-8 0.75″ 2.48″ 2.02″ 3.57″ 6.11″ 2.00″ 6,000 3.90 S0116-HD22 1.00″ 2.34″ 1-1/8″-7 0.88″ 2.78″ 2.24″ 4.10″ 7.16″ 2.50″ 8,000 7.00 S0116-HD25 1.13″ 2.67″ 1-1/4″-7 0.94″ 3.00″ 2.47″ 4.96″ 7.75″ 2.75″ 10,000 8.90
