Rock Exotica: Butterfly Lift

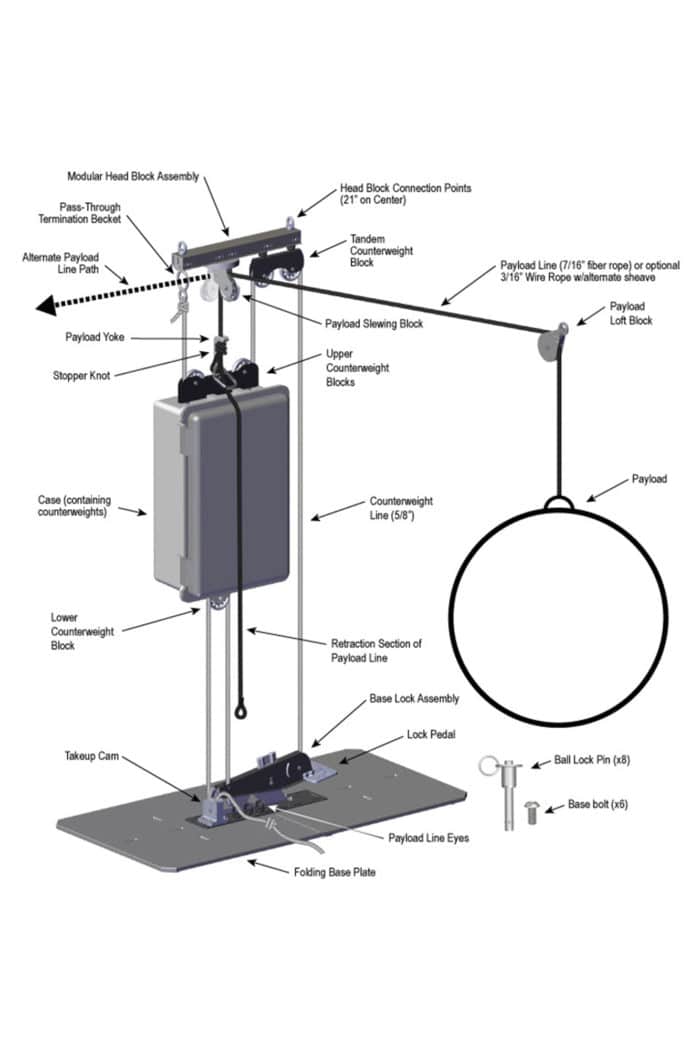

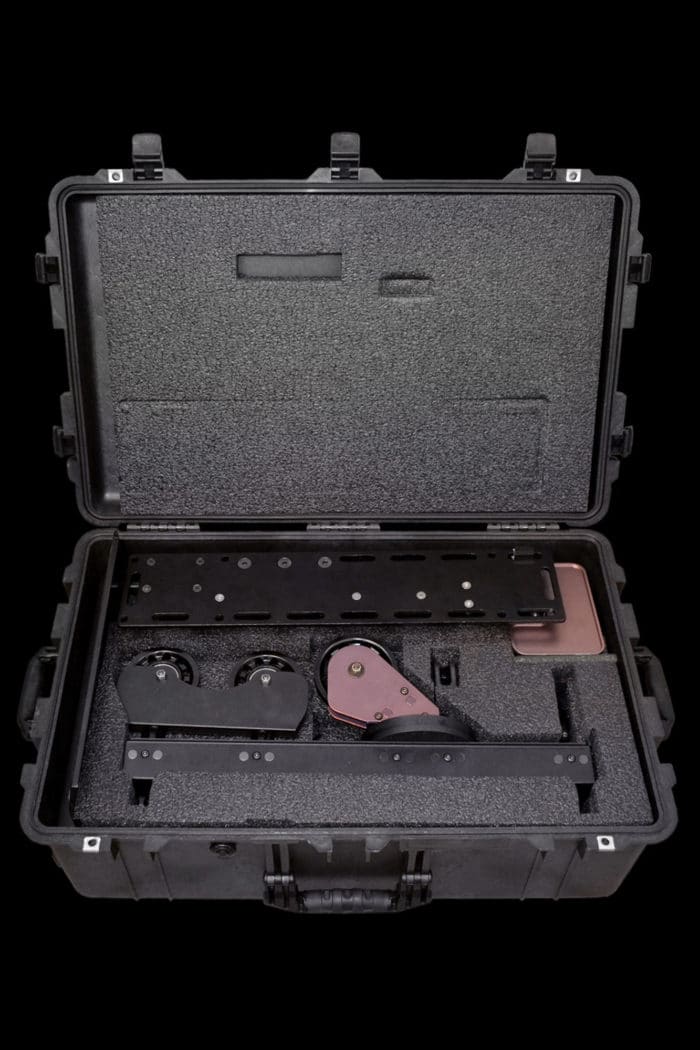

Description What does it do? The Butterfly Lift is an intuitive manual counterweight flying system for human payloads up to 158kg or non-human payloads up to 226kg in weight. With a Butterfly Lift you can: Swiftly lower a payload line to a stage. Attach a load or performer on the payload line. Immediately unlock a pre-set counterweight and raise/lower the load or performer with minimal manual effort. Smoothly fly the load or performer at variable speeds perfect for live performance. Max speed varies with operator technique and strength but speeds of 1.8mps (metres per second) to 2.4mps are typical. Land the load or dismount the performer from the apparatus while retaining control of the counterweight via a foot-operated locking  system. Immediately retract the payload line from view. For more information click here or here. How it Works The unique counter-weight arbor system contained within the Butterfly Lift case is fully adjustable to match the weight of the performer(s).  In additional to the offset provided by the counterweight, a 2:1 mechanical advantage is also achieved by the system. The combination of the counterweight and mechanical advantage amplifies the input force from the operator and reduces the effort required by the operator to fly a performer. The adjustable arbor can accommodate traditional stage weights as well as improvised ballast such as concrete or sand bags. The base lock assembly includes a bi-directional cam lock mechanism that releases the load when the operator depresses the foot pedal and locks the system when the pedal is released. This lock holds the overhead arbor when the performer dismounts the system and anytime the system is not in use. The payload line is attached to the apparatus and is quickly deployable and retractable, independent of the position of the Butterfly Lift ballast. This allows the apparatus to be raised and lowered without having to move the full weight of the ballast during performance. For more information click here. Installation The Butterfly Lift is adaptable to rig in nearly any location of sufficient height and suitable support structure to fly a performer. Careful consideration must be given to suitable anchors and rigging methods when installing the Butterfly Lift. Only individuals properly trained in theater or aerial rigging should perform this task. For more information click here. Features & Benefits Replaces more expensive and complicated motorized winches. Provides engineered and tested safety that will be consistently applied to each performance despite the venue. Base lock holds counter weight system when there is not performer and the system is unbalanced until the operator depresses the foot pedal releasing the locking mechanism. All lift components (minus mounting board) fit within the case. Durable case features wheels and handle for ease of transport and can be checked as luggage on flights. 2:1 mechanical advantage. Retractable payload line quickly raises and lowers apparatus independent of counterweight system. A variety of weights can be used: standard theater weights, sand bags, or concrete bags. What’s Included The Butterfly Lift consists of four main pieces: the case or ballast, head block, brake assembly and mounting board. All pieces, except the mounting board, fit within the Butterfly Lift case in precision-cut foam for efficient transport and storage. The Butterfly Lift is sold in configurations that bundle textile rope in various lengths. Butterfly Lift – 18.25m (60 ft) Package* This package will accommodate house ceilings up to 60′ high. Butterfly Lift Head Block Slewing payload block with fiber rope sheave (Wire rope kit available) Operating line double block Payload line pass-through becket Handled case with wheels Adjustable arbor rack Top and bottom arbor blocks Payload line yoke Base lock assembly Base rope lock with foot pedal Rope tensioner Folding base plate Payload loft block with fiber rope sheave (Wire rope kit available) 54m (180′) 5/8″ Operating line Double braid poly/poly 5/8″ (16mm) Tensile: 6530kg (14,400 lbs) Weight: 10kg (22.5 lbs) 2-4% Elongation 54m (180′) 7/16 static Payload line Double braid poly/poly 7/16″ (11mm) Tensile: 2393kg (6,600 lbs) Weight: 5kg (11.5 lbs) 2-4% Elongation *Please note that the 40′ package is available on request. Specifications BFL Case weight with components: 37kg (80 lbs) Base and bag: 14kg (30lbs) Total rope weight (2): 13.5kg (34 lbs) Operating Line: 5/8″ diameter x 36.5m (120′) Payload Line:7/16″ dia x 6.5m (120′) Max Counterweight: 350 lbs (case weight counterbalance weights) Max Payload: 158.5kg (350 lbs) (human weight apparatus) 226.5kg (500 lbs) (non-live load) Min Operating height: House height -10′ Max Operating height: 18.25m (60′) Wire Rope Payload Kit (additional $725) The Wire Rope Payload Kit allows for the connection of a wire rope payload line to the Butterfly Lift. Includes a stopper and two steel sheaves necessary to operate the lift with wire rope. Wire rope not included. Working with wire rope requires proper training and should only be attempted by qualified individuals. Wire rope sheave for slewing head block Wire rope sheave for payload loft block Wire rope yoke adapter Check out the butterfly-user-manual included here. Shipping Please note that this is an oversized item. We will contact you with a shipping price after purchase. If desired, you may contact us before buying for a shipping quote.
