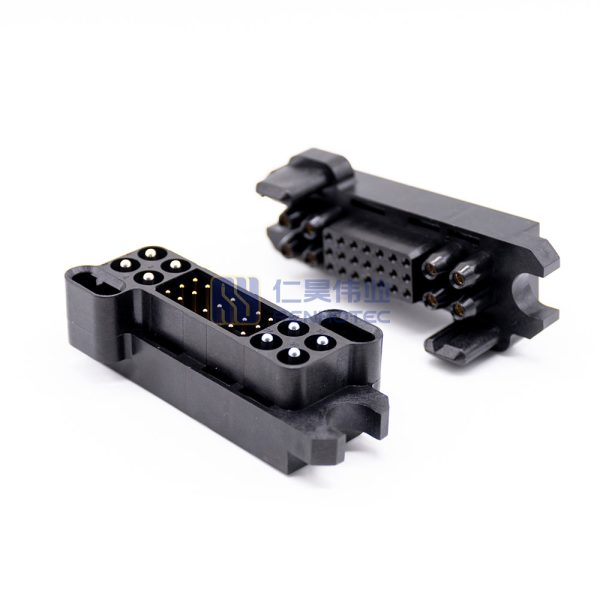

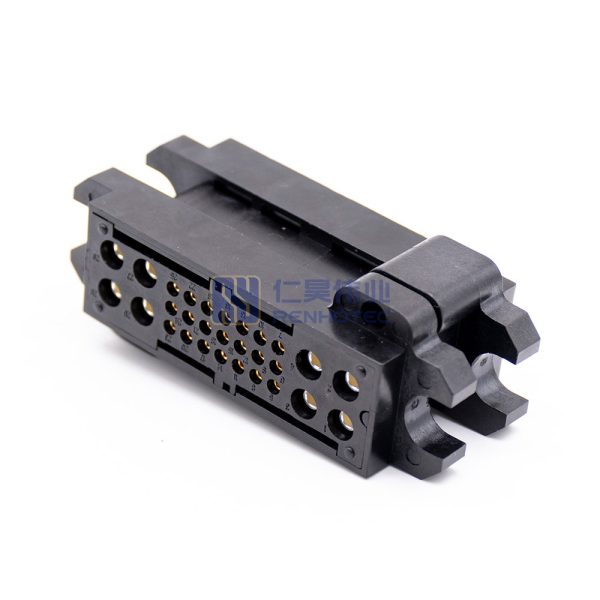

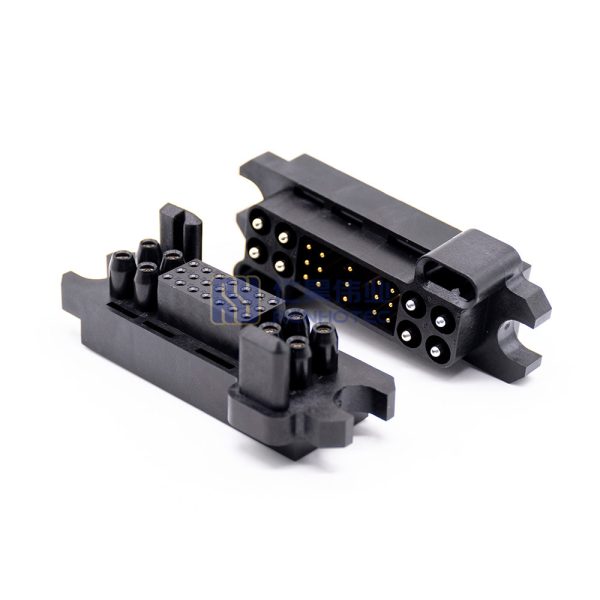

Power Drawer Connector High Current Heavy Load 29 Pin 35A
$30.84
$41.33
Product Type Gender Female, Male Orientation Right Angle, Straight Number of Positions 29 Pin Contact Quantity 8Pin Power (12#:35A) 21Pin Signal (20#:5A) Mounting Type Panel Mount Shell Material PBT Gender Female, Male Orientation Right Angle, Straight Number of Positions 29 Pin Contact Quantity 8Pin Power (12#:35A) 21Pin Signal (20#:5A) Mounting Type Panel Mount Shell Material PBT Electrical Characteristics Rated Current 35A Contact Resistance ≤1.0MΩ Insulation Resistance ≥1000MΩ Withstand Voltage 1500V Rated Current 35A Contact Resistance ≤1.0MΩ Insulation Resistance ≥1000MΩ Withstand Voltage 1500V Contact Type Contact Material Copper, Copper Alloy Contact Finish Gold Plating, Silver Plating Contact Termination Crimp, Solder, Solder Cup Contact Material Copper, Copper Alloy Contact Finish Gold Plating, Silver Plating Contact Termination Crimp, Solder, Solder Cup Mechanical Characteristics Mating Cycles ≥1000 Mating Cycles ≥1000 Environmental Characteristics Operating Temperature -55℃~ 125℃ Operating Temperature -55℃~ 125℃ Drawer Connector is modular power interconnects for designers of power systems and electrical hardware. Drawer Connectors feature a modular tooling platform that provides a wide variety of possible configurations. A single housing can have up to 10 modules. These connectors also have the flexibility to use one of five different contact types in each module. This flexibility helps designers find an ideal fit rather than using housings that are not a match. Product Drawing Drawer Connector Dimension Application Drawer Connector is commonly used in office and home cabinets, industrial equipment and control cabinets, commercial display cabinets and cash registers, automotive interiors and logistics shelves, as well as electronic equipment chassis and instrument boxes. It realizes the stable connection between the drawer and the main structure, ensures its smooth opening and closing and functional realization, and meets the usage requirements in different scenarios. Drawer Connector Application
